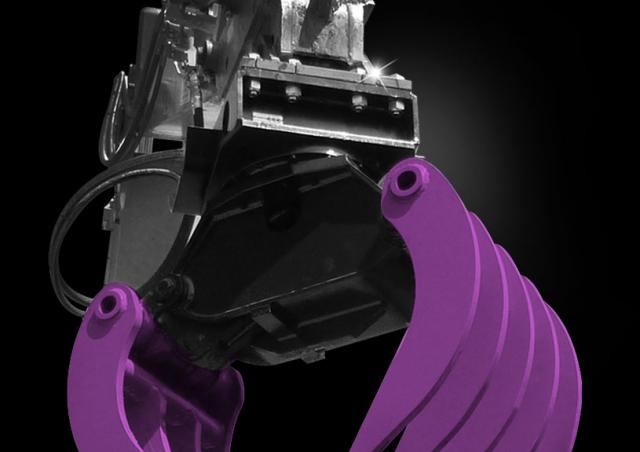

PSG1003-D Prodem PSG1003-D Specifications & Technical Data (2020—2026)

Grabber capacity: 0.7m³ – Carrying device: 15-20t – Closing force: 46kN – Height: 1300mm – Width: 1000mm – Opening width: 1950mm

Attachments Demolition Sorting Grabs Prodem PSG1003-D

Technical specs - PSG1003-D Prodem

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Grabber capacity
0.7 m³
Carrying device
15-20 t
Closing force
46 kN
Height
1300 mm
Width
1000 mm
Opening width
1950 mm
Max. pressure
350 bar
Weight
1.1 t
Model series
PSG

Basic model without hoselines and adapter for excavator

Special equipment

endless rotation
No
Hydr. grabber rotating mechanism
No
Piston rod protections
No
Quick hitch mech.
No

Download datasheets (PDF)
