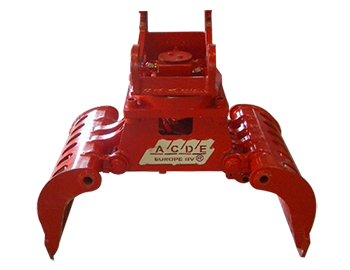

ACDE S1102-ZD
- Grabber capacity:
- 0.75 m³
- Carrying device:
- 16-25 t
- Closing force:
- 55 kN
- Height:
- 1200 mm
S1102-ZD ACDE S1102-ZD Specifications & Technical Data (2020—2026)
Technical specs - S1102-ZD ACDE
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Grabber capacity
- 0.75 m³
- Carrying device
- 16-25 t
- Closing force
- 55 kN
- Height
- 1200 mm
- Width
- 900 mm
- Opening width
- 2100 mm
- Max. pressure
- 350 bar
- Weight
- 1.1 t
- Model series
- ZD
Basic model without hoselines and adapter for excavator
Special equipment
- endless rotation
-
No
- Hydr. grabber rotating mechanism
-
No
- Piston rod protections
-
No
- Quick hitch mech.
-
No
