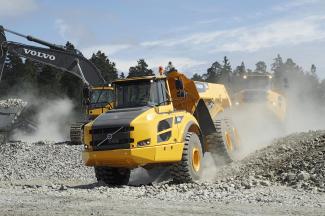

A40F Volvo A40F Specifications & Technical Data (2011—2014)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - A40F Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 30.8 t
- Standard tyres
- 29.5 R 25
- Dump capacity
- 24 m³
- Travel speed
- 57 km/h
- Net load
- 39 t
- Transport length
- 11.26 m
- Transport width
- 3.43 m
- Transport height
- 3.62 m
- Turning radius outside
- 8.97 m
- Loading height
- 3.2 m
- Model series
- A
- Engine manuf.
- Volvo
- Engine type
- D 16 H-B
- Engine power
- 350 kW
- Displacement
- 16.1 l
- Revolutions at max torque
- 1050 rpm
More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
Volvo A40F FAQ
How much does the Volvo A40F articulated dump truck weigh?
What are the transport dimensions of the Volvo A40F articulated dump truck?
What is the travel speed of the Volvo A40F articulated dump truck?
What are the undercarriage specifications of the Volvo A40F articulated dump truck?
What is the turning radius of the Volvo A40F articulated dump truck?
What is the material handling capacity of the Volvo A40F articulated dump truck?
How much is a Volvo A40F Articulated dump truck (2011u20132014) worth?
