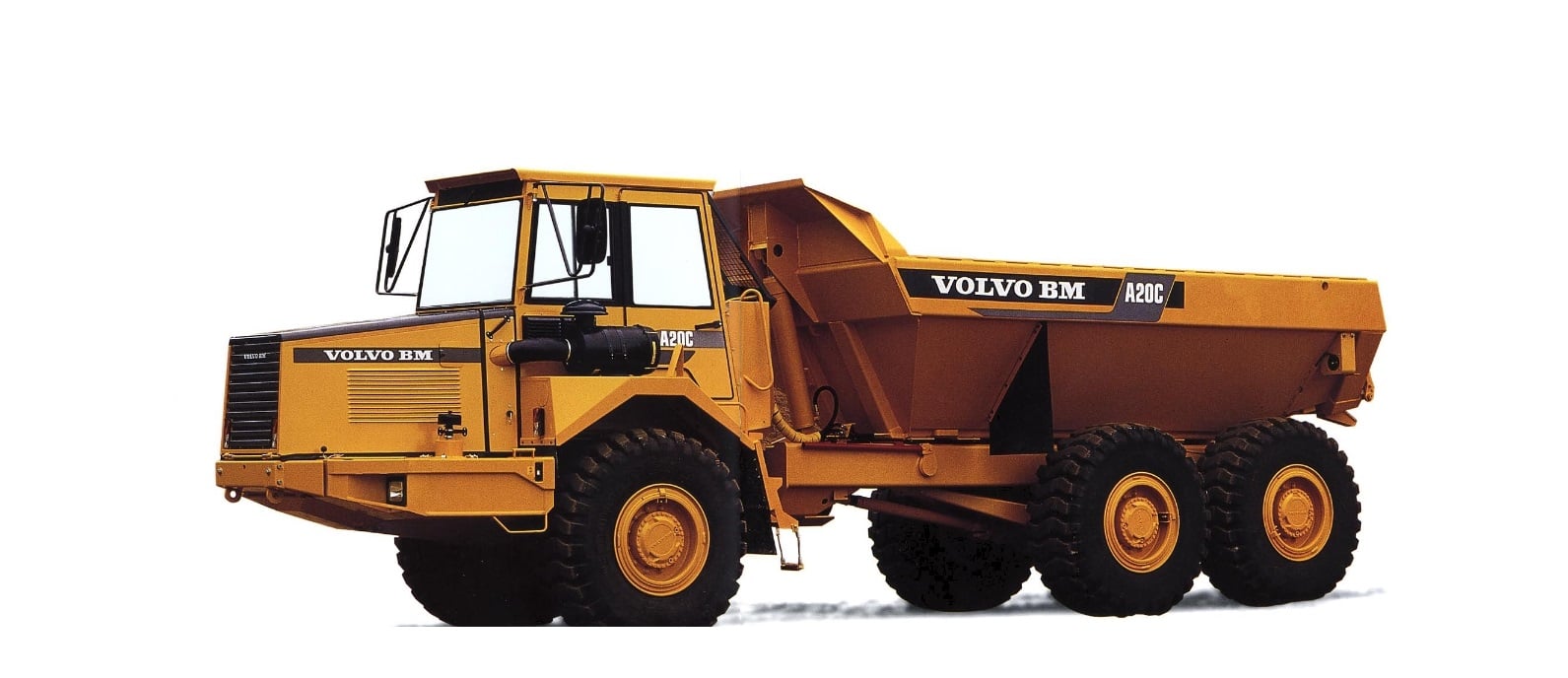

A20C Volvo A20C Specifications & Technical Data (1995—1997)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - A20C Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.4 t
- Standard tyres
- 20.5R25
- Dump capacity
- 12 m³
- Travel speed
- 47 km/h
- Net load
- 20 t
- Transport length
- 9.51 m
- Transport width
- 2.49 m
- Transport height
- 3.15 m
- Engine manuf.
- Volvo
- Engine type
- TD71KF
- Engine power
- 170 kW
- Displacement
- 6.73 l
- Revolutions at max torque
- 2400 rpm
- Max. torque
- 775/570 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 104.77x130 mm
More technical details, like: turning radius outside, loading height, model series, dimension lxwxh, emission level are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download datasheets (PDF)
