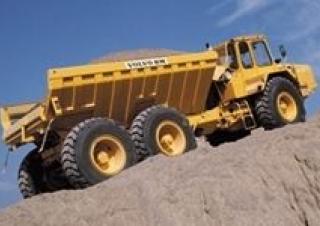

860S Volvo 860S Specifications & Technical Data (1976—1979)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - 860S Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.18 t
- Standard tyres
- 18.00-25/16 / 20.5-25/16
- Dump capacity
- 11 m³
- Travel speed
- 51.3 km/h
- Net load
- 18.5 t
- Transport length
- 9.29 m
- Transport height
- 2.8 m
- Turning radius outside
- 7.5 m
- Engine manuf.
- Volvo
- Engine type
- TD 60 A
- Engine power
- 125 kW
- Displacement
- 5.48 l
- Revolutions at max torque
- 2000 rpm
- Max. torque
- 503 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 98.43x120 mm
More technical details, like: transport width, loading height, model series, dimension lxwxh, emission level are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download datasheets (PDF)
Volvo 860S FAQ
How much does the Volvo 860S weigh?
What are the transport dimensions of the Volvo 860S articulated dump truck?
What is the travel speed of the Volvo 860S articulated dump truck?
What are the standard tyre sizes of the Volvo 860S articulated dump truck's undercarriage?
What is the turning radius of the Volvo 860S articulated dump truck?
What is the material handling capacity of the Volvo 860S articulated dump truck?
How much is a Volvo 860S Articulated dump truck (1976u20131979) worth?
