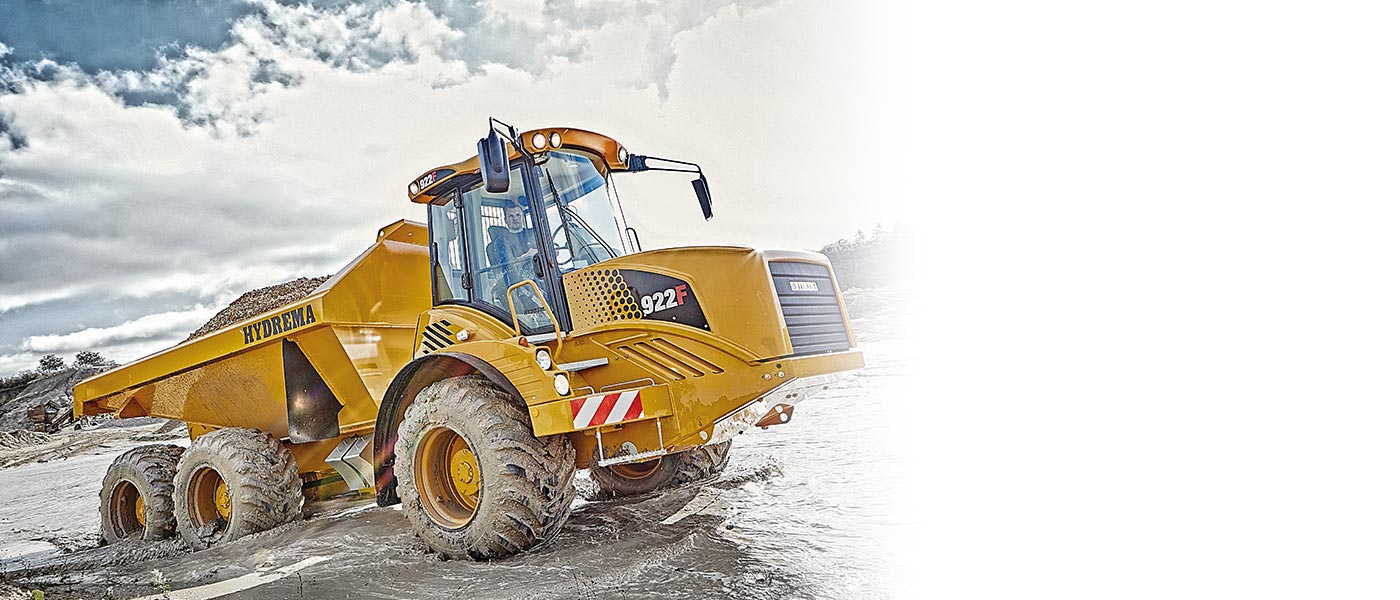

922F(HM) Hydrema 922F(HM) Specifications & Technical Data (2019—2021)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hydrema live at
Technical specs - 922F(HM) Hydrema
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.4 t
- Standard tyres
- 800/45-30.5
- Dump capacity
- 12 m³
- Travel speed
- 50 km/h
- Net load
- 20 t
- Transport length
- 9.14 m
- Transport width
- 3.18 m
- Transport height
- 3.44 m
- Turning radius outside
- 8.49 m
- Loading height
- 2.61 m
- Model series
- F
- Engine manuf.
- Cummins
- Engine type
- QSB6.7
- Engine power
- 218 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 1044 Nm
- No. of cylinders
- 6
- Emission level
- IV. T4f
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
