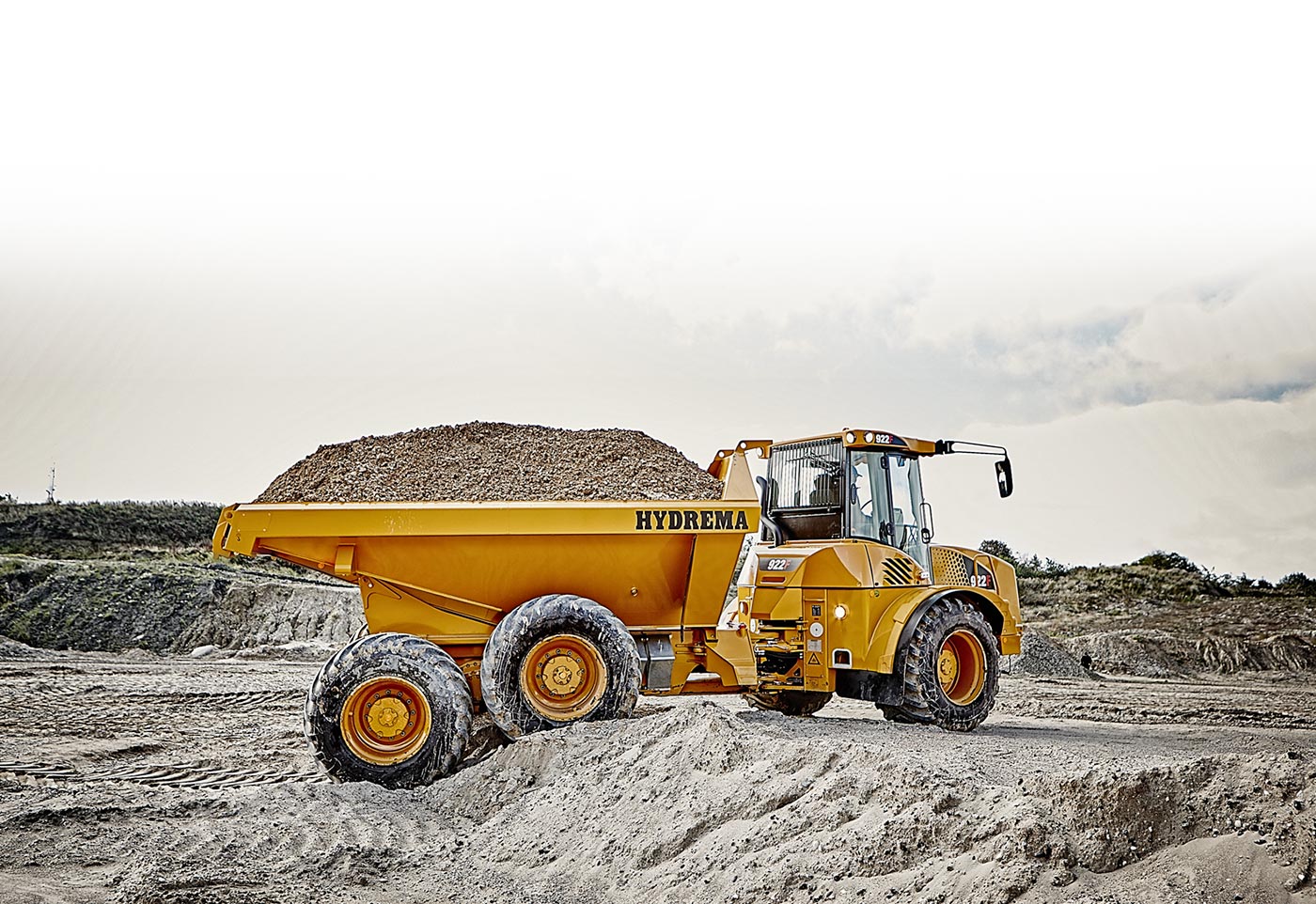

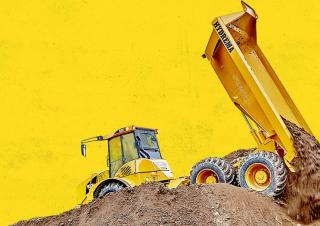

922F Hydrema 922F Specifications & Technical Data (2015—2021)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hydrema live at
Technical specs - 922F Hydrema
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.9 t
- Standard tyres
- 600/60-30.5
- Dump capacity
- 12 m³
- Travel speed
- 50 km/h
- Net load
- 20 t
- Transport length
- 9.14 m
- Transport width
- 2.93 m
- Transport height
- 3.44 m
- Turning radius outside
- 8.34 m
- Loading height
- 2.61 m
- Model series
- F
- Engine manuf.
- Cummins
- Engine type
- QSB6.7-C260
- Engine power
- 225 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
