DA30-5 Develon DA30-5 Specifications & Technical Data (2024—2026)

Weight: 23.2t – Standard tyres: 23.5 R25 – Dump capacity: 17.8m³ – Travel speed: 55km/h – Net load: 28t – Transport length: 9.515m

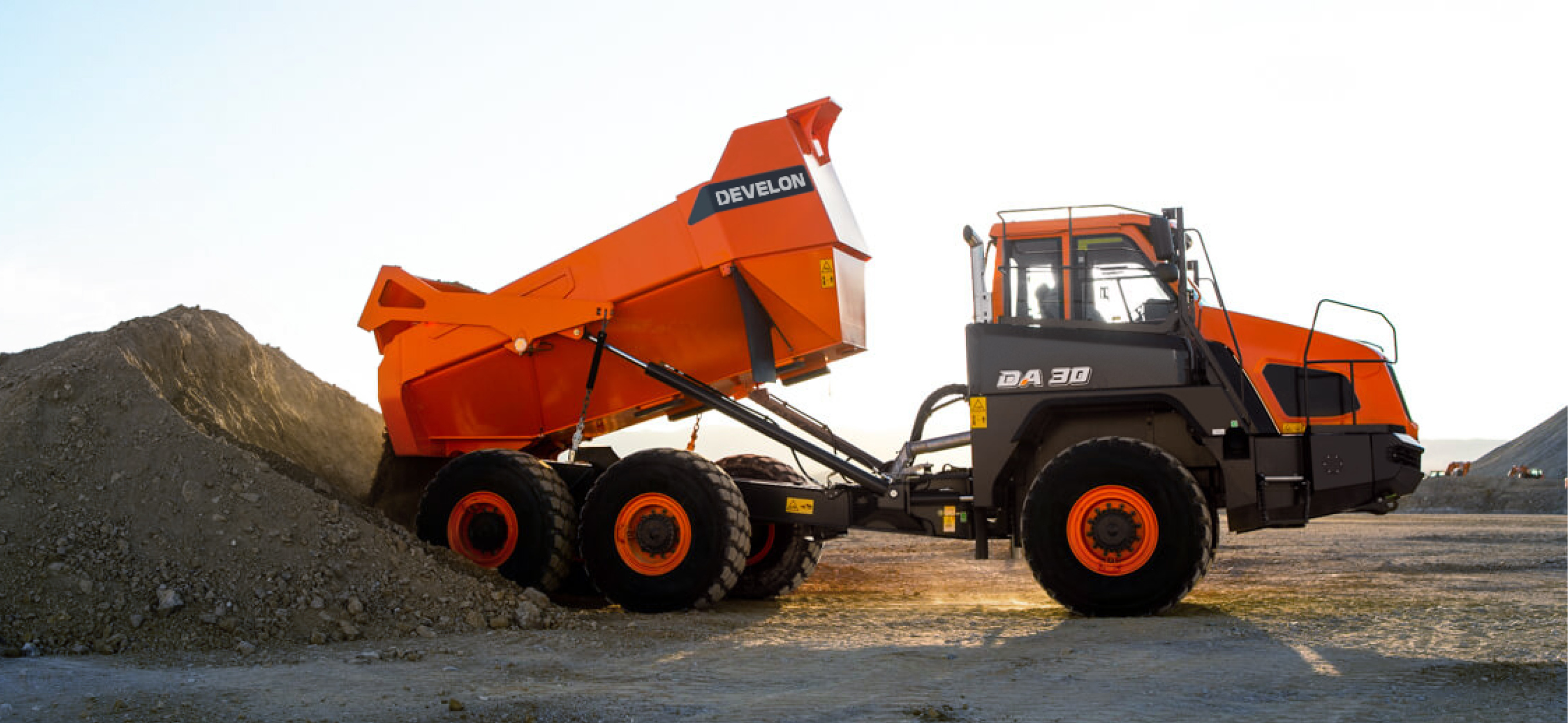

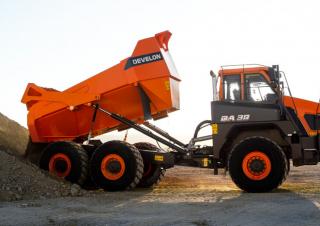

Articulated Dump Trucks Develon DA30-5

Visit Develon live at

Technical specs - DA30-5 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.2 t
Standard tyres
23.5 R25
Dump capacity
17.8 m³
Travel speed
55 km/h
Net load
28 t
Transport length
9.515 m
Transport width
3 m
Transport height
3.604 m
Turning radius outside
7.77 m
Loading height
2.946 m
Model series
DA
Engine manuf.
Scania
Engine type
DC09
Engine power
276 kW
Displacement
9.3 l
Revolutions at max torque
1300 rpm
Max. torque
1873 Nm
No. of cylinders
5
Cylinder bore x stroke
130x140 mm
Emission level
Tier 4

Special equipment

Diesel particulate filter
Yes
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
Yes
