D35C Caterpillar D35C Specifications & Technical Data (1986—2026)

Weight: 23.9t – Standard tyres: F: 29.5x25 20R/R: 33.25x29 23R – Dump capacity: 20.2m³ – Travel speed: 56km/h – Net load: 31.8t – Transport length: 9.44m

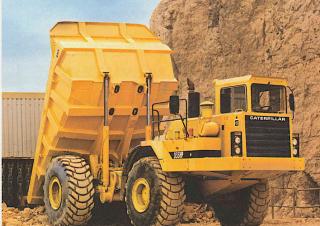

Articulated Dump Trucks Caterpillar D35C

Technical specs - D35C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.9 t
Standard tyres
F: 29.5x25 20R/R: 33.25x29 23R
Dump capacity
20.2 m³
Travel speed
56 km/h
Net load
31.8 t
Transport length
9.44 m
Transport width
3.5 m
Transport height
3.34 m
Turning radius outside
5.42 m
Loading height
2.93 m
Model series
D
Engine manuf.
Caterpillar
Engine type
3306
Engine power
194 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar D35C FAQ

When was the Caterpillar D35C manufactured?

The Caterpillar D35C was first produced in 1986.

How much does the Caterpillar D35C articulated dump truck weigh?

The Caterpillar D35C articulated dump truck weighs 23.9 tons.

What are the transport dimensions of the Caterpillar D35C articulated dump truck?

The Caterpillar D35C has a transport length of 9.44 meters, a transport width of 3.5 meters, and a transport height of 3.34 meters.

What is the travel speed of the Caterpillar D35C articulated dump truck?

The Caterpillar D35C articulated dump truck has a travel speed of 56 km/h.

What are the standard tyre specifications for the Caterpillar D35C articulated dump truck?

The Caterpillar D35C comes with standard tyres sized Front: 29.5x25 20R and Rear: 33.25x29 23R.

What is the turning radius of the Caterpillar D35C articulated dump truck?

The Caterpillar D35C has an outside turning radius of 5.42 meters.

What is the material handling capacity of the Caterpillar D35C articulated dump truck?

The Caterpillar D35C has a net load capacity of 31.8 tons, a dump capacity of 20.2 cubic meters, and a loading height of 2.93 meters.
