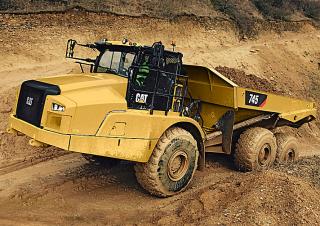

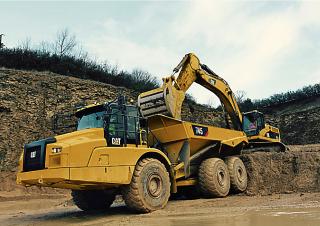

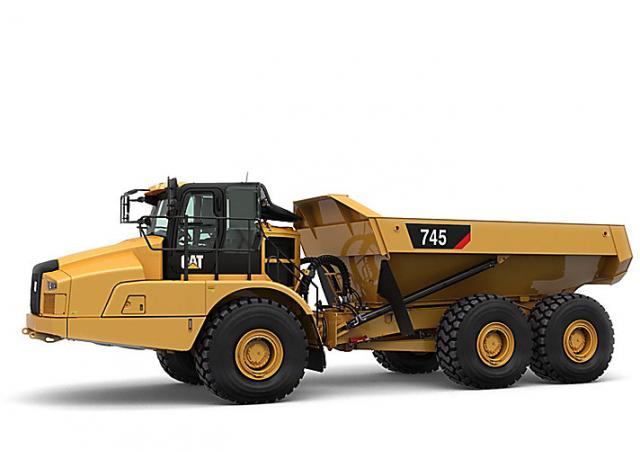

745 Caterpillar 745 Specifications & Technical Data (2017—2019)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Technical specs - 745 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 33.36 t
- Standard tyres
- 29.5 R25
- Dump capacity
- 25 m³
- Travel speed
- 54.8 km/h
- Net load
- 41 t
- Transport length
- 11.42 m
- Transport width
- 3.8 m
- Transport height
- 3.76 m
- Turning radius outside
- 9.08 m
- Loading height
- 3.18 m
- Engine manuf.
- Caterpillar
- Engine type
- C18 Acert
- Engine power
- 381 kW
- Displacement
- 18.1 l
- Revolutions at max torque
- 1700 rpm
- Cylinder bore x stroke
- 145x183 mm
- Emission level
- Tier 2
More technical details, like: model series, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
Yes
- Heated dump body
-
Yes
- Tailgate
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
