735C Caterpillar 735C Specifications & Technical Data (2015—2019)

Caterpillar is the manufacturer of the articulated dump truck model 735 C. Find and download detailed specs and data sheets for th…

Caterpillar is the manufacturer of the articulated dump truck model 735 C. Find and download detailed specs and data sheets for this machine here.

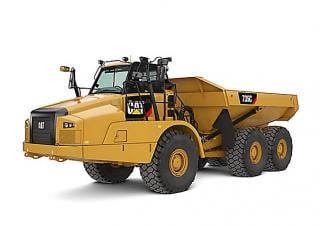

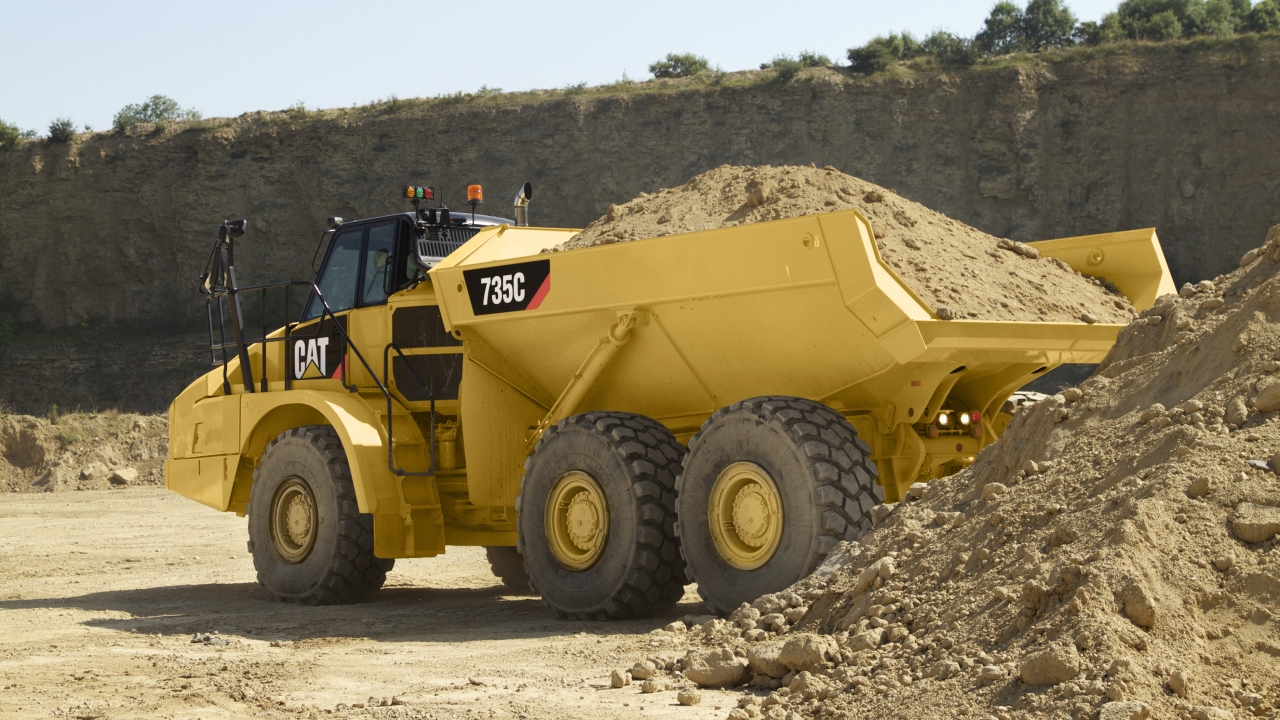

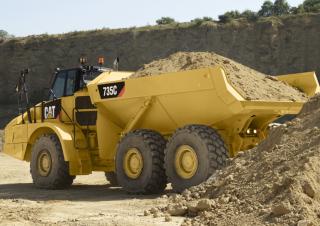

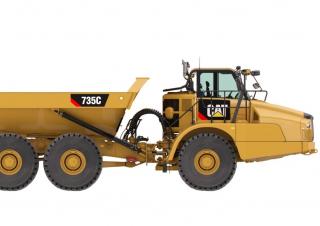

This articulated dump truck is built to provide up to 337kW or 451 horse power, delivered from its powerful Caterpillar engine to the 32.7t 735 C machine. The Caterpillar 735 C can be grouped in the biggest machine segment in the articulated dump trucks category.

The 735 C is manufactured and distributed with Bin heating, Central lubrication and Aircondition. It has been sold without air Tailgate and Diesel particulate filter as of 2017. There are more detailed specifications and machine descriptions available in the original Caterpillar 735 C specs data sheet.

This model can be acquired for a list price between €608000 and €774000. Production of the 735 C continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Caterpillar models of this type on LECTURA Specs are the 725 C, 745 C and 730 C, and 6 other articulated dump trucks, which currently range from 21.7t up to 33.4t are also available. This 735 C articulated dump truck, which has been in production between 2015 and 2017 ranks in the LECTURA index at #22. Want more detailed specifications? Download the latest Caterpillar 735 C specs data sheet on LECTURA Specs today!

Articulated Dump Trucks Caterpillar 735C

735C

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 735C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 31.4 t

Standard tyres: 26.5 R25

Dump capacity: 20.5 m³

Travel speed: 53.9 km/h

Net load: 32.7 t

Transport length: 11.062 m

Transport width: 4.166 m

Transport height: 3.996 m

Turning radius outside: 8.42 m

Loading height: 2.987 m

Engine manuf.: Caterpillar

Engine type: C15 Acert

Engine power: 337 kW

Displacement: 15.2 l

Revolutions at max torque: 1200 rpm

Max. torque: 2618 Nm

Cylinder bore x stroke: 137x171.5 mm

Emission level: Tier 4 f

More technical details, like: model series, dimension lxwxh, no. of cylinders, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, traction control, front differential, second axle differential, third axle differential, centre transfer differential, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, speed - reverse maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: Yes
Heated dump body: Yes
Tailgate: No
Aircondition: Yes

Download specalog and datasheets (PDF)

735C Caterpillar Specification for Europe (EN)

Caterpillar 735C FAQ

When was the Caterpillar 735C manufactured?

The Caterpillar 735C was manufactured from 2015 to 2019.

How much does the Caterpillar 735C weigh?

The Caterpillar 735C weighs 31.4 tons.

What are the transport dimensions of the Caterpillar 735C articulated dump truck?

The Caterpillar 735C has a transport length of 11.06 meters, a transport width of 4.17 meters, and a transport height of 4 meters.

What is the travel speed of the Caterpillar 735C articulated dump truck?

The Caterpillar 735C articulated dump truck has a travel speed of 53.9 km/h.

What is the standard tyre size of the Caterpillar 735C articulated dump truck?

The Caterpillar 735C articulated dump truck is equipped with standard tyres sized 26.5 R25.

What is the turning radius of the Caterpillar 735C articulated dump truck?

The Caterpillar 735C has an outside turning radius of 8.42 meters.

What is the material handling capacity of the Caterpillar 735C articulated dump truck?

The Caterpillar 735C has a net load capacity of 32.7 tons, a dump capacity of 20.5 cubic meters, and a loading height of 2.99 meters.
