735 Caterpillar 735 Specifications & Technical Data (2001—2005)

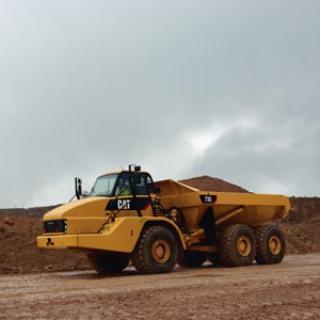

Manufactured by Caterpillar, this is the 735 articulated dump truck. Find and download detailed specs and data sheets for this mac…

Manufactured by Caterpillar, this is the 735 articulated dump truck. Find and download detailed specs and data sheets for this machine here.

This articulated dump truck is built to provide up to 272kW or 364 horse power, delivered from its powerful Caterpillar engine to the 29.8t 735 machine. The 735 is categorised in the biggest machine segment in the articulated dump trucks category. The 735’s size is 3.304m x 10.889m x 3.703m.

The 735 is manufactured and distributed with Aircondition and Bin heating. Diesel particulate filter, Tailgate and Central lubrication are not provided on this model as of 2005. There are more detailed specifications and machine descriptions available in the original Caterpillar 735 specs data sheet. Available in English, German and Russian, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production stopped in 2005, where this 735 was available at a new list price between €392000 and €498000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 7 other articulated dump trucks, which range from 21.7t up to 33.4t are produced by Caterpillar. Of these, 745 C, 725 C and also 730 C are the most frequently visited on LECTURA Specs. Throughout the production cycle of this 735 articulated dump truck, there have been around 7 models that average a price of €97900 for an age of 13 years Want more detailed specifications? Download the latest Caterpillar 735 specs data sheet on LECTURA Specs today!

735

Years of manufacture: 2001—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 735 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 29.8 t

Standard tyres: 26.5 R 25

Dump capacity: 19 m³

Net load: 31.7 t

Transport length: 10.889 m

Transport width: 3.304 m

Transport height: 3.703 m

Turning radius outside: 8.595 m

Loading height: 2.917 m

Engine manuf.: Caterpillar

Engine type: 3406 E-ATAAC-EUI

Engine power: 272 kW

Displacement: 14.6 l

Revolutions at max torque: 1900 rpm

More technical details, like: travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, final drive, traction control, front differential, second axle differential, third axle differential, centre transfer differential, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, speed - reverse maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: Yes
Tailgate: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar 735 FAQ

When was the Caterpillar 735 articulated dump truck manufactured?

The Caterpillar 735 was manufactured from 2001 to 2005.

How much does the Caterpillar 735 articulated dump truck weigh?

The Caterpillar 735 articulated dump truck weighs 29.8 tons.

What are the transport dimensions of the Caterpillar 735 articulated dump truck?

The Caterpillar 735 has a transport length of 10.89 meters, a transport width of 3.3 meters, and a transport height of 3.7 meters.

What are the undercarriage specifications of the Caterpillar 735 articulated dump truck?

The Caterpillar 735 articulated dump truck is equipped with standard tyres sized 26.5 R 25.

What is the turning radius of the Caterpillar 735 articulated dump truck?

The Caterpillar 735 articulated dump truck has an outside turning radius of 8.595 meters.

What is the material handling capacity of the Caterpillar 735 articulated dump truck?

The Caterpillar 735 has a net load capacity of 31.7 tons and a dump capacity of 19 cubic meters.

How much is a Caterpillar 735 Articulated dump truck (2001u20132005) worth?

The residual value of the Caterpillar 735 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
