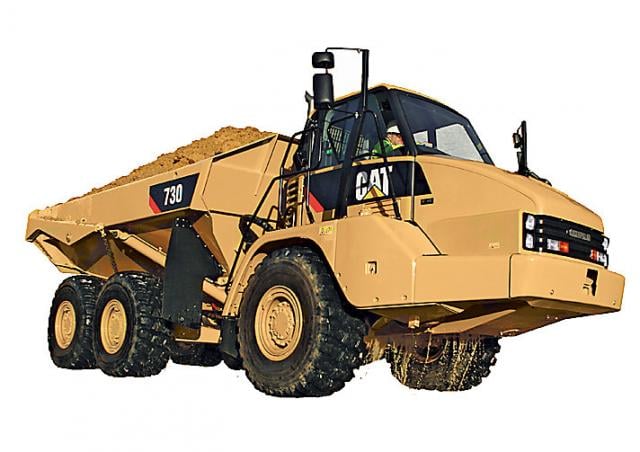

730 Caterpillar 730 Specifications & Technical Data (2006—2026)
.jpeg)
Technical specs - 730 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 25.55 t
- Standard tyres
- 750/65/R25
- Dump capacity
- 16.9 m³
- Travel speed
- 55 km/h
- Net load
- 28.1 t
- Transport length
- 9.73 m
- Transport width
- 3.07 m
- Transport height
- 3.76 m
- Turning radius outside
- 7.69 m
- Loading height
- 3.05 m
- Engine manuf.
- Caterpillar
- Engine type
- C11 Acert
- Engine power
- 239 kW
- Displacement
- 11.15 l
- Cylinder bore x stroke
- 130x140 mm
- Emission level
- Tier 3/ IIIA
More technical details, like: model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
Yes
- Heated dump body
-
Yes
- Tailgate
-
Yes
- Aircondition
-
Yes
