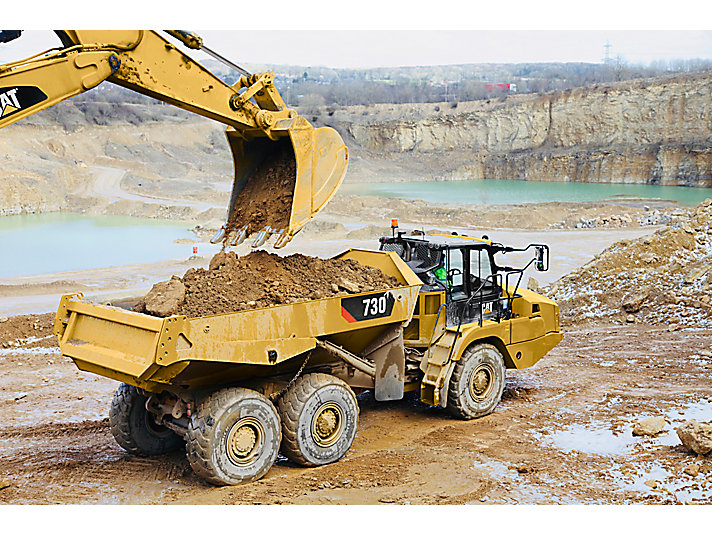

730 Caterpillar 730 Specifications & Technical Data (2017—2019)
.jpeg)
.jpeg)
Technical specs - 730 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 23.9 t
- Standard tyres
- 23.5R25
- Dump capacity
- 17.5 m³
- Travel speed
- 55 km/h
- Net load
- 28 t
- Transport length
- 10.445 m
- Transport width
- 2.95 m
- Transport height
- 3.508 m
- Turning radius outside
- 7.47 m
- Loading height
- 2.916 m
- Engine manuf.
- Caterpillar
- Engine type
- C13 Acert
- Engine power
- 274 kW
- Displacement
- 12.5 l
- Revolutions at max torque
- 1200 rpm
- Max. torque
- 2120 Nm
- Cylinder bore x stroke
- 130x157 mm
- Emission level
- Tier 4 Final/Stage IV
More technical details, like: model series, dimension lxwxh, no. of cylinders are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
