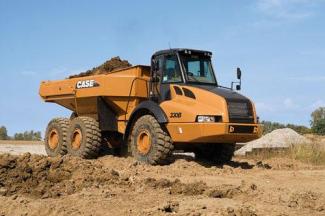

330B Case 330B Specifications & Technical Data (2010—2016)

case is the manufacturer of the articulated dump truck model 330 B. Find and download detailed specs and data sheets for this mach…

case is the manufacturer of the articulated dump truck model 330 B. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this 330 B 22.57t machine can provide 260kW or 348 horse power for the articulated dump truck. The 330 B is categorised in the medium sized machine segment in the articulated dump trucks category. The model's dimensions are 10.03m x 2.96m x 3.65m.

It does not include Tailgate, Diesel particulate filter and Bin heating. There are more detailed specifications and machine descriptions available in the original case 330 B specs data sheet. Download a free data sheet in Chinese, Spanish, French, German and English from LECTURA Specs.

At present, other articulated dump trucks, which range from up to are produced by case. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest case 330 B specs data sheet on LECTURA Specs today!

330B

Years of manufacture: 2010—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 330B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.57 t

Standard tyres: 23.5 R 25

Dump capacity: 13.7 m³

Travel speed: 46.6 km/h

Net load: 28.16 t

Transport length: 10.03 m

Transport width: 2.96 m

Transport height: 3.65 m

Loading height: 2.82 m

Model series: B

Engine manuf.: Case

Engine type: Family IV

Engine power: 260 kW

Displacement: 10.3 l

Revolutions at max torque: 1900 rpm

More technical details, like: turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, service brake - type, length - overall, height - max, ground clearance, width - over tyres, width - transport, width - operating, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, fuel tank, heaped capacity, cycle time - raise, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: No

Download datasheets (PDF)

Case 330B FAQ

When was the Case 330B manufactured?

The Case 330B was manufactured from 2010 to 2016.

How much does the Case 330B articulated dump truck weigh?

The Case 330B articulated dump truck weighs 22.57 tons.

What are the transport dimensions of the Case 330B articulated dump truck?

The Case 330B has a transport length of 10.03 meters, a transport width of 2.96 meters, and a transport height of 3.65 meters.

What is the travel speed of the Case 330B articulated dump truck?

The Case 330B articulated dump truck has a travel speed of 46.6 km/h.

What is the standard tyre size of the Case 330B articulated dump truck?

The Case 330B articulated dump truck has standard tyres sized 23.5 R 25.

What is the material handling capacity of the Case 330B articulated dump truck?

The Case 330B has a net load capacity of 28.16 tons, a dump capacity of 13.7 cubic meters, and a loading height of 2.82 meters.
