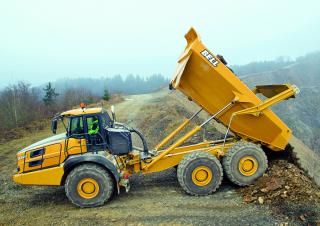

B40E Bell B40E Specifications & Technical Data (2016—2021)

The B 40 E articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machine…

The B 40 E articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machine here.

This articulated dump truck is built to provide up to 380kW or 509 horse power, delivered from its powerful Mercedes-Benz engine to the 31.8t B 40 E machine. This BELL articulated dump truck belongs to the biggest machine segment in the articulated dump trucks category. The model's dimensions are 11.197m x 3.662m x 3.804m.

The BELL B 40 E has been equipped and sold with Aircondition and Central lubrication. It does not include Diesel particulate filter, Bin heating and Tailgate. There are more detailed specifications and machine descriptions available in the original BELL B 40 E specs data sheet.

This model can be acquired for a list price between €449000 and €572000. Production of the B 40 E continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

BELL currently produces 6 other articulated dump trucks, which range from 19.7t up to 42.5t - the most visited on LECTURA Specs are B 25 E, B 60 E, B 30 E. This B 40 E articulated dump truck, which has been in production between 2016 and 2017 ranks in the LECTURA index at #20. Want more detailed specifications? Download the latest BELL B 40 E specs data sheet on LECTURA Specs today!

B40E

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - B40E Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 31.8 t

Standard tyres: 29.5 R25

Dump capacity: 24.5 m³

Travel speed: 51 km/h

Net load: 39 t

Transport length: 11.197 m

Transport width: 3.662 m

Transport height: 3.804 m

Turning radius outside: 9.235 m

Loading height: 3.271 m

Model series: E

Engine manuf.: Mercedes-Benz

Engine type: OM471 LA

Engine power: 380 kW

Displacement: 12.8 l

Revolutions at max torque: 1700 rpm

Max. torque: 2380 Nm

No. of cylinders: 6

Emission level: 4f

More technical details, like: dimension lxwxh, cylinder bore x stroke, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, traction control, front differential, second axle differential, third axle differential, centre transfer differential, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, approach angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, front - laden, rear - laden, speed - forward maximum, speed - reverse maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: Yes
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

B40E Bell Specification for Europe (EN)

Bell B40E FAQ

When was the Bell B40E articulated dump truck manufactured?

The Bell B40E was manufactured from 2016 to 2021.

How much does the Bell B40E articulated dump truck weigh?

The Bell B40E articulated dump truck weighs 31.8 tons.

What are the transport dimensions of the Bell B40E articulated dump truck?

The Bell B40E has a transport length of 11.2 meters, a transport width of 3.66 meters, and a transport height of 3.8 meters.

What is the travel speed of the Bell B40E articulated dump truck?

The Bell B40E articulated dump truck has a travel speed of 51 km/h.

What are the standard tyres used on the Bell B40E articulated dump truck?

The Bell B40E articulated dump truck uses standard tyres sized 29.5 R25.

What is the outside turning radius of the Bell B40E articulated dump truck?

The Bell B40E has an outside turning radius of 9.235 meters.

What is the material handling capacity of the Bell B40E articulated dump truck?

The Bell B40E has a net load capacity of 39 tons, a dump capacity of 24.5 cubic meters, and a loading height of 3.27 meters.
