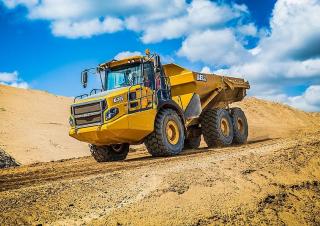

B30E Bell B30E Specifications & Technical Data (2021—2026)
.jpg)
Technical specs - B30E Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.885 t
- Standard tyres
- 23.5 R 25
- Dump capacity
- 21 m³
- Travel speed
- 50 km/h
- Net load
- 28 t
- Transport length
- 9.953 m
- Transport width
- 3.268 m
- Transport height
- 3.426 m
- Turning radius outside
- 8 m
- Loading height
- 2.864 m
- Model series
- E
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM936 LA
- Engine power
- 260 kW
- Displacement
- 7.7 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1450 Nm
- No. of cylinders
- 6
- Emission level
- EU V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
Yes
- Heated dump body
-
Yes
- Tailgate
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
