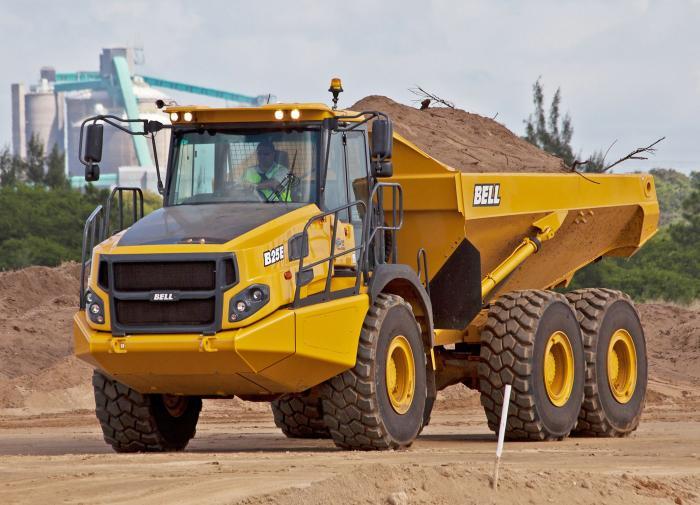

B25E Bell B25E Specifications & Technical Data (2013—2021)
-
Model rating
- 8,00 / 10
Technical specs - B25E Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.7 t
- Standard tyres
- 23.5 R 25
- Dump capacity
- 15.5 m³
- Travel speed
- 50 km/h
- Net load
- 24 t
- Transport length
- 9.953 m
- Transport width
- 2.998 m
- Transport height
- 3.425 m
- Turning radius outside
- 8 m
- Loading height
- 2.763 m
- Model series
- E
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM936 LA
- Engine power
- 210 kW
- Displacement
- 7.7 l
- Emission level
- IV/Tier 4f
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
