403J-11T Perkins 403J-11T Specifications & Technical Data (2019—2026)

The Perkins 403J-11T engine, manufactured since 2019, is a 1.1 liter machine component weighing 93 kilograms. It features 3 cylind…

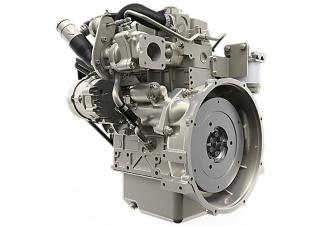

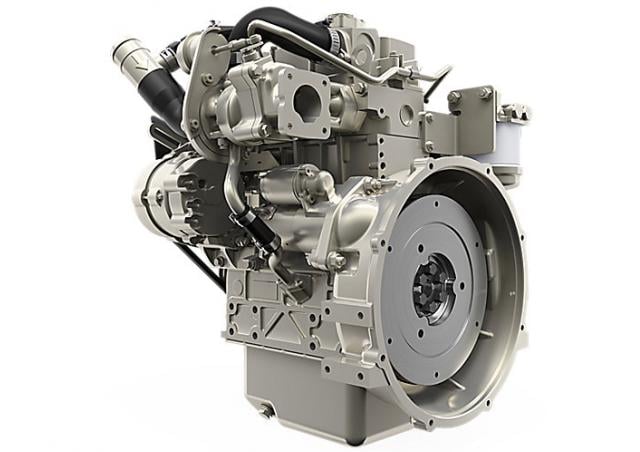

The Perkins 403J-11T engine, manufactured since 2019, is a 1.1 liter machine component weighing 93 kilograms. It features 3 cylinders with a bore of 77 mm and a stroke of 81 mm. With a maximum torque of 86 Nm, it operates at a maximum power of 18.9 kW and a minimum power of 18.4 kW at 2400 RPM.

Engines Perkins 403J-11T

Technical specs - 403J-11T Perkins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.1 l
Layout
Inline
min. Power
18.4 kW
max. Power
18.9 kW
RPM
2400
Max. torque
86 Nm
Tier Max.
EU V / US T4f
Aspiration
N
Weight
93 kg
Type of cooling
w
Bore
77 mm
Stroke
81 mm
Model series
400

More technical details, like: tier min., alternative name are available in the full technical specs.
