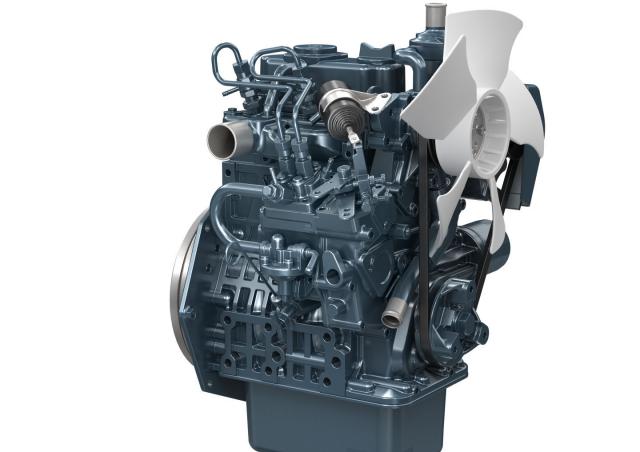

Z602-E4B Kubota Z602-E4B Specifications & Technical Data (2017—2026)

The Kubota Z602-E4B engine is a machine component manufactured since 2017. It has a displacement of 0.599 liters and weighs 57 kil…

The Kubota Z602-E4B engine is a machine component manufactured since 2017. It has a displacement of 0.599 liters and weighs 57 kilograms. With a maximum torque of 37.8 Nm, it is equipped with two cylinders. The bore measures 72 mm, while the stroke is 73.6 mm. It can generate a maximum power of 12.5 kW at 3600 RPM.

Engines Kubota Z602-E4B

Technical specs - Z602-E4B Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
2
Displacement
0.599 l
Layout
Inline
max. Power
12.5 kW
RPM
3600
Max. torque
37.8 Nm
Tier Max.
Tier 4 / V
Aspiration
N
Weight
57 kg
Type of cooling
w
Bore
72 mm
Stroke
73.6 mm
Model series
Z

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.

Download datasheets (PDF)

Kubota Z602-E4B overview

Emission

Emissions

The Kubota Super Mini Series features compact multi-cylinder liquid cooled industrial diesel engines which comply with EPA / CARB Tier 4 emissions regulations.


Injection

Clean and Quiet Power

Kubota’s original E-TVCS (Three Vortex Combustion System) has been further improved for cleaner emissions. The piston recess has been optimized to achieve lower particulate matter (PM) levels at an extremely small size. The half-float valve cover and MoS2-coated pistons reduce noise levels and decrease vibrations transmitted from the valve area.
