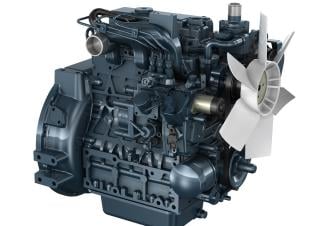

D1803-M-DI-E2B Kubota D1803-M-DI-E2B Specifications & Technical Data (2017—2026)

The Kubota D1803-M-DI-E2B engine, manufactured since 2017, has a displacement of 1.826 liters and a weight of 151 kilograms. It is…

The Kubota D1803-M-DI-E2B engine, manufactured since 2017, has a displacement of 1.826 liters and a weight of 151 kilograms. It is equipped with 3 cylinders, each with a bore of 87 mm and a stroke of 102.4 mm. The engine has a maximum torque of 124.5 Nm and a maximum power output of 28.4 kW at 2700 RPM.

Engines Kubota D1803-M-DI-E2B
Engines Kubota D1803-M-DI-E2B
Engines Kubota D1803-M-DI-E2B
Engines Kubota D1803-M-DI-E2B

Technical specs - D1803-M-DI-E2B Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.826 l
Layout
Inline
max. Power
28.4 kW
RPM
2700
Max. torque
124.5 Nm
Tier Max.
Tier 2 / IIIA
Aspiration
N
Weight
151 kg
Type of cooling
w
Bore
87 mm
Stroke
102.4 mm
Model series
D

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.

Download datasheets (PDF)

Kubota D1803-M-DI-E2B overview

Emission

Emissions

The D1803-M engine complies with EPA Interim Tier 4 emissions regulations that are effective through the end of 2012. This engine also complies with EU Stage III A requirements that are effective through 2012 and beyond in the European market.


Injection

Clean and Quiet Power

Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber and piston recess were optimized to provide a 50% lower particulate matter (PM) level, the same stringent level as above the 37KW class (EPA Interim Tier 4 Option 1). The half-float valve cover and MoS2 coated pistons lower noise levels by 1.0-2.0 dBA over conventional diesel engines and provide reduced transmitted vibration from the valve area for better noise characteristics.


Option

The Kubota 03-M Series engines offer side power take-off(PTO), in response to the trend of increasing hydraulic control devices in industrial machines. It is possible to install a hydraulic pump at two side PTO locations. A Direct Injection engine is also available.
