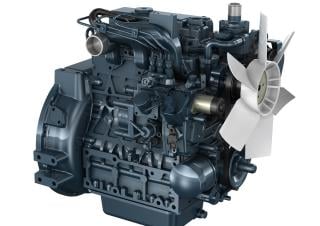

D1703-M-DI-E4B Kubota D1703-M-DI-E4B Specifications & Technical Data (2017—2026)

The Kubota D1703-M-DI-E4B engine, manufactured since 2017, has a displacement of 1.647 liters and a weight of 148 kilograms. It is…

The Kubota D1703-M-DI-E4B engine, manufactured since 2017, has a displacement of 1.647 liters and a weight of 148 kilograms. It is equipped with 3 cylinders, each with a bore of 87 mm and a stroke of 92.4 mm. The engine has a maximum torque of 97.4 Nm and a maximum power output of 18.5 kW at 2200 RPM.

Engines Kubota D1703-M-DI-E4B

Technical specs - D1703-M-DI-E4B Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.647 l
Layout
Inline
max. Power
18.5 kW
RPM
2200
Max. torque
97.4 Nm
Tier Max.
Tier 4 / V
Aspiration
N
Weight
148 kg
Type of cooling
w
Bore
87 mm
Stroke
92.4 mm
Model series
D

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.
