D1503-M Kubota D1503-M Specifications & Technical Data (2021—2026)

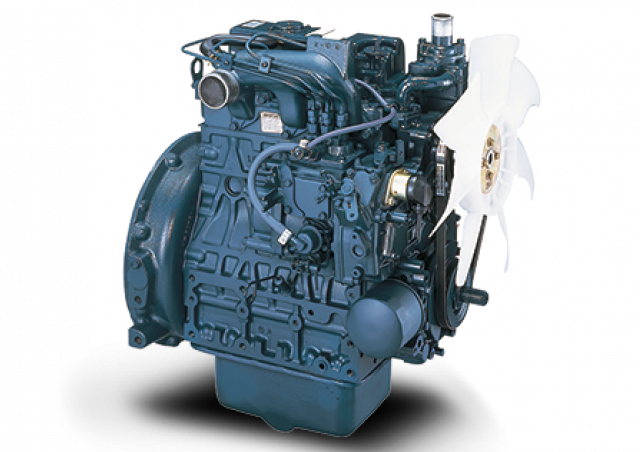

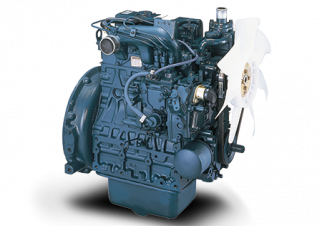

The Kubota D1503-M engine, manufactured since 2021, is a machine component with a displacement of 1.499 liters. It weighs 148 kilo…

The Kubota D1503-M engine, manufactured since 2021, is a machine component with a displacement of 1.499 liters. It weighs 148 kilograms and features three cylinders with a bore of 83 millimeters and a stroke of 92.4 millimeters. The engine has a maximum power output of 22.4 kilowatts at a speed of 2800 RPM.

Engines Kubota D1503-M

Technical specs - D1503-M Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.499 l
Layout
Inline
max. Power
22.4 kW
RPM
2800
Aspiration
N
Weight
148 kg
Type of cooling
w
Bore
83 mm
Stroke
92.4 mm
Model series
D

More technical details, like: min. power, max. torque, tier min., tier max., alternative name are available in the full technical specs.
