TTCD 7.8 L6 Deutz TTCD 7.8 L6 Specifications & Technical Data (2017—2026)

The Deutz TTCD 7.8 L6 engine, manufactured since 2017, has a displacement of 7.8 liters and weighs 1225 kilograms. It is equipped …

The Deutz TTCD 7.8 L6 engine, manufactured since 2017, has a displacement of 7.8 liters and weighs 1225 kilograms. It is equipped with 6 cylinders, each with a bore of 110 millimeters and a stroke of 136 millimeters. The engine can generate a maximum torque of 1565 Newton-meters and a maximum power of 291 kilowatts at 2100 RPM.

Engines Deutz TTCD 7.8 L6

Technical specs - TTCD 7.8 L6 Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
7.8 l
Layout
Inline
max. Power
291 kW
RPM
2100
Max. torque
1565 Nm
Tier Min.
EU IV / US T4f
Tier Max.
EU V
Aspiration
T
Weight
1225 kg
Type of cooling
w
Bore
110 mm
Stroke
136 mm
Model series
TTCD

More technical details, like: min. power, alternative name are available in the full technical specs.

Download datasheets (PDF)

Deutz TTCD 7.8 L6 overview

Cool

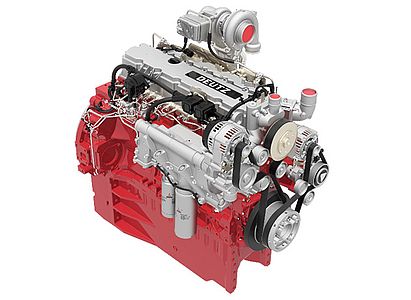

DEUTZ TCD 7.8 Engine

The DEUTZ TCD 7.8 is the compact, water-cooled 6-cylinder inline engine for agricultural machinery with a power range from 255 to 390 hp. It already complies with the requirement of EU Stage V effective January 2019. The engine has two-stage turbocharging, charge air-cooling and cooled external exhaust gas recirculation.
