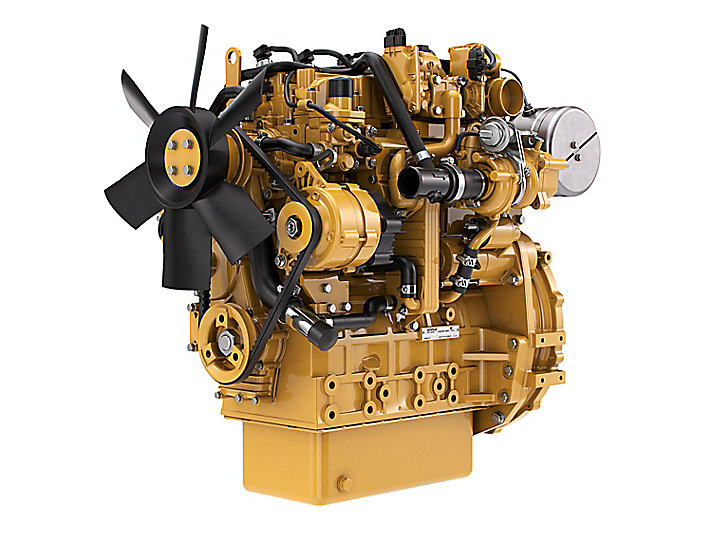

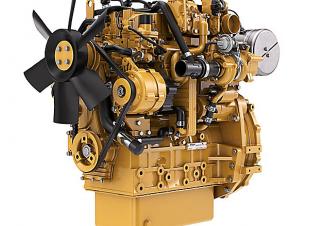

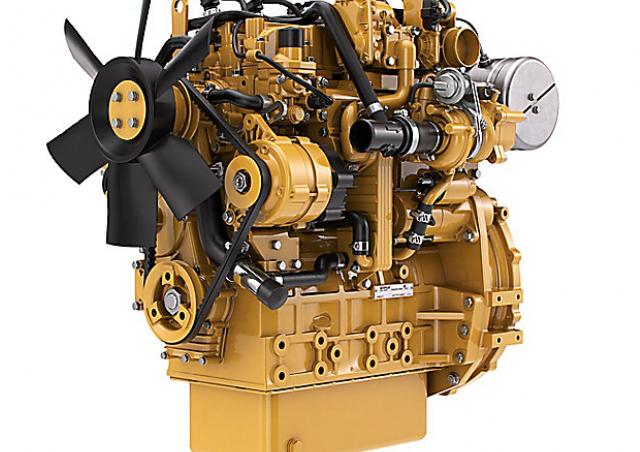

C2.2 Caterpillar C2.2 Specifications & Technical Data (2019—2026)

The Caterpillar C2.2 engine, manufactured since 2019, is a machine component with a displacement of 2.2 liters and a weight of 231…

The Caterpillar C2.2 engine, manufactured since 2019, is a machine component with a displacement of 2.2 liters and a weight of 231 kilograms. It features a maximum torque of 270 Nm and is equipped with four cylinders. The engine has a bore of 84 mm and a stroke of 100 mm. With a minimum power output of 45 kW and a maximum power output of 55 kW, it operates at a speed of 2800 RPM.

Engines Caterpillar C2.2

Technical specs - C2.2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
2.2 l
Layout
Inline
min. Power
45 kW
max. Power
55 kW
RPM
2800
Max. torque
270 Nm
Tier Max.
EU V / US T4f
Weight
231 kg
Bore
84 mm
Stroke
100 mm

More technical details, like: tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.
