1380 Weidemann 1380 Specifications & Technical Data (2016—2020)

Weight: 2.7t – Standard tyres: 10.0/75-15.3 AS ET 80 – Tipping load: 2071kg – Wheel base: 1.73m – Travel speed: 20km/h – Steering mode: KL

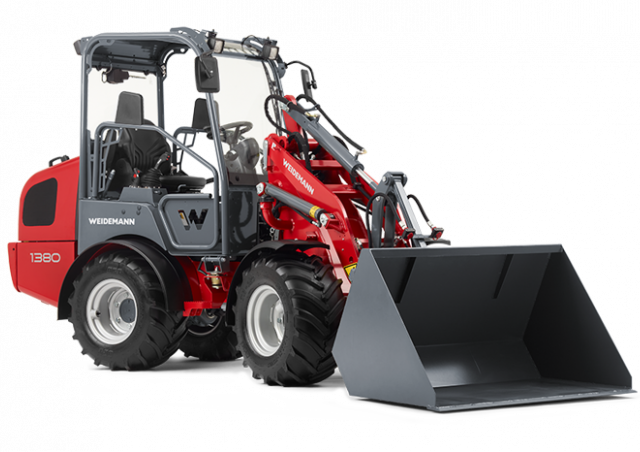

Yard loader Weidemann 1380

Technical specs - 1380 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.7 t
Standard tyres
10.0/75-15.3 AS ET 80
Tipping load
2071 kg
Wheel base
1.73 m
Travel speed
20 km/h
Steering mode
KL
Max. discharge height
2.13 m
Turning radius outside
3.040 m
Turning radius inside
1.61 m
Transport length
4 m
Transport width
1.04 m
Transport height
2.26 m
Engine manuf.
Perkins
Engine type
404D-22
Engine power
35.7 kW
Displacement
2.216 l
Revolutions at max torque
2600 rpm
No. of cylinders
4
Emission level
III A

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Weidemann 1380 FAQ

When was the Weidemann 1380 manufactured?

The Weidemann 1380 was manufactured from 2016 to 2020.

What is the weight of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader has a weight of 2.7 tonnes.

What are the transport dimensions of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader has a transport length of 4 meters, a transport width of 1.04 meters, and a transport height of 2.26 meters.

What is the travel speed of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader features articulated-frame steering with an outside turning radius of 3.04 meters and an inside turning radius of 1.61 meters.

What are the standard tyre specifications for the Weidemann 1380?

The Weidemann 1380 is equipped with standard tyres sized 10.0/75-15.3 AS ET 80.

What is the wheelbase of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader has a wheelbase of 1.73 meters.

What is the tipping load capacity of the Weidemann 1380 yard loader?

The Weidemann 1380 has a tipping load capacity of 2071 kilograms.

What is the maximum discharge height of the Weidemann 1380 yard loader?

The Weidemann 1380 has a maximum discharge height of 2.13 meters.
