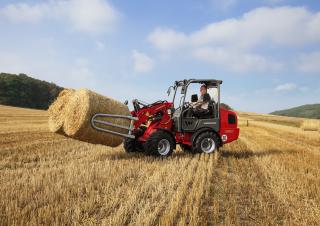

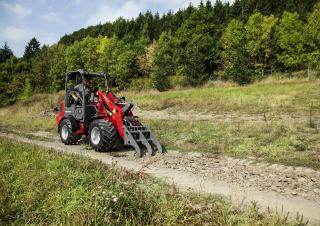

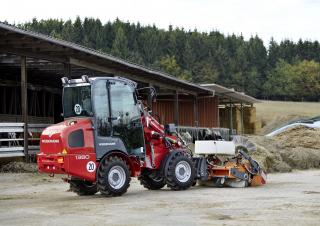

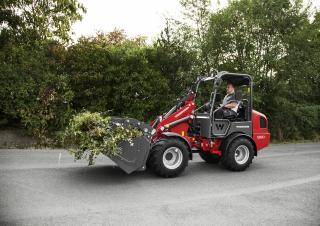

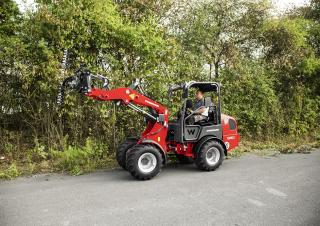

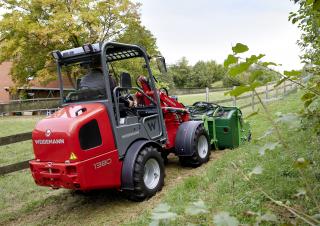

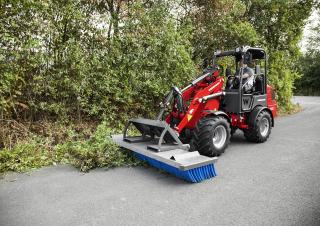

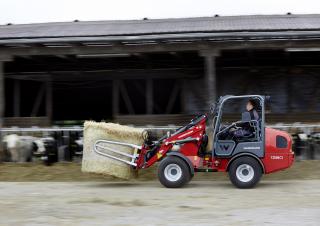

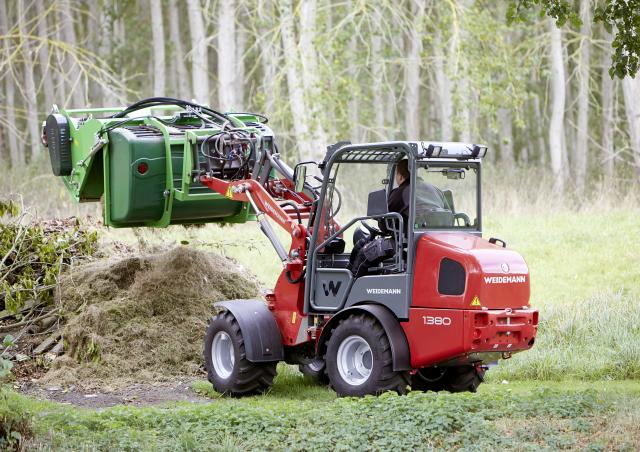

1380 Weidemann 1380 Specifications & Technical Data (2016—2019)

Weight: 2.7t – Standard tyres: 10.0/75-15.3 AS ET 80 – Tipping load: 1803kg – Wheel base: 1.73m – Travel speed: 20km/h – Steering mode: KL

1380

Years of manufacture: 2016—2019

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1380 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.7 t

Standard tyres: 10.0/75-15.3 AS ET 80

Tipping load: 1803 kg

Wheel base: 1.73 m

Travel speed: 20 km/h

Steering mode: KL

Max. discharge height: 2.13 m

Turning radius outside: 3.040 m

Turning radius inside: 1.61 m

Transport length: 4 m

Transport width: 1.04 m

Transport height: 2.26 m

Engine manuf.: Perkins

Engine type: 404D-22de

Engine power: 31.4 kW

Displacement: 2.216 l

Revolutions at max torque: 2600 rpm

No. of cylinders: 4

Emission level: IIIA

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Weidemann 1380 FAQ

When was the Weidemann 1380 manufactured?

The Weidemann 1380 was manufactured from 2016 to 2019.

What is the weight of the Weidemann 1380?

The Weidemann 1380 has a weight of 2.7 tonnes.

What are the transport dimensions of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader has a transport length of 4 meters, a transport width of 1.04 meters, and a transport height of 2.26 meters.

What is the travel speed of the Weidemann 1380?

The Weidemann 1380 has a travel speed of 20 km/h.

What are the maneuverability specifications of the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader features articulated-frame steering with an outside turning radius of 3.04 meters and an inside turning radius of 1.61 meters.

What are the standard tyre specifications for the Weidemann 1380 yard loader?

The Weidemann 1380 yard loader is equipped with standard tyres sized 10.0/75-15.3 AS ET 80.

What are the chassis specifications of the Weidemann 1380?

The Weidemann 1380 has a wheel base of 1.73 meters.

What is the mass capacity of the Weidemann 1380?

The Weidemann 1380 has a tipping load capacity of 1803 kilograms.

What is the maximum discharge height of the Weidemann 1380 yard loader?

The Weidemann 1380 has a maximum discharge height of 2.13 meters.

How much is a Weidemann 1380 Yard loader (2016u20132019) worth?

The residual value of the Weidemann 1380 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Weidemann 1380 overview

Drive

1380 Standard components

Perkins 404 D-22 de (31.4 kW / 43 hp) P-kinematics (lift height 3010 mm) Axle T94, hydrostatic medium-pressure 4 wheel drive Hydrostatic 4 wheel drive, travel direction can be selected via joystick Service brake: Hydrostatic drive system acting on all 4 wheels (wear-free) Central service and parking brake in the drive train acting on all 4 wheels Tyres 10.0/75–15.3 AS ET80 Hydraulic articulated pendulum steering, 12° oscillating angle 3rd control circuit front DN12 Hydraulic oil cooler Lock for control valve Floating position for lift and tipping cylinders Operator's canopy with retaining system roll-over protective structure / FOPS-tested, including rear window, laterally tiltable operator’s cab Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment Joystick with direction control switch and integrated touch button for differential lock Adjustable steering column Work lights (2 front, 2 rear) Operating hour meter Battery isolator switch Fuel display Mechanical quickhitch system for attachments
