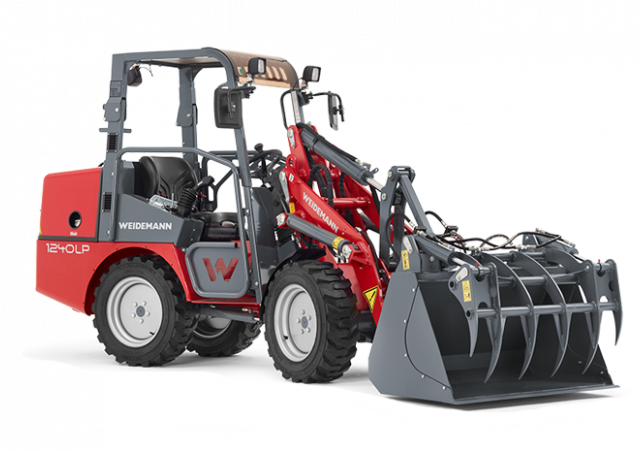

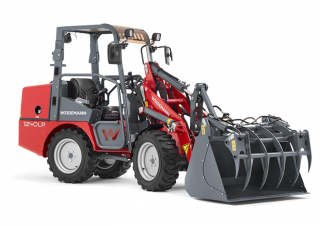

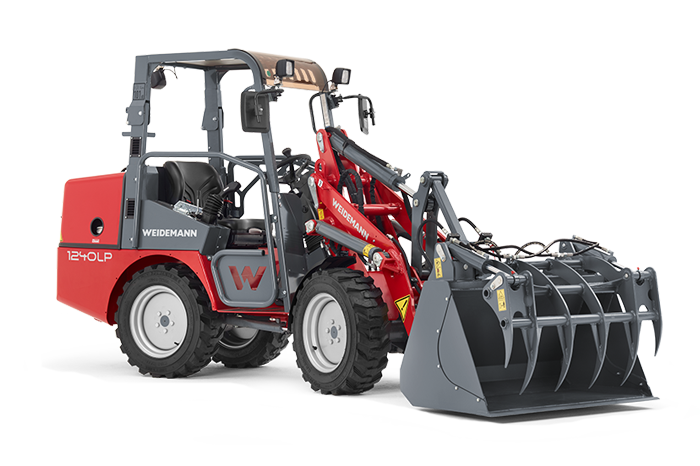

1240 LP Weidemann 1240 LP Specifications & Technical Data (2017—2020)
Technical specs - 1240 LP Weidemann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.84 t
- Standard tyres
- 27x8.50-15 EM ET 30
- Tipping load
- 1169 kg
- Wheel base
- 1.54 m
- Travel speed
- 13 km/h
- Steering mode
- KL
- Max. discharge height
- 1.4 m
- Turning radius outside
- 3.034 m
- Turning radius inside
- 1.56 m
- Transport length
- 4 m
- Transport width
- 0.96 m
- Transport height
- 1.89 m
- Engine manuf.
- Perkins
- Engine type
- 403D-15
- Engine power
- 24.4 kW
- Displacement
- 1.496 l
- Revolutions at max torque
- 2800 rpm
- No. of cylinders
- 3
- Emission level
- IIIA
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
