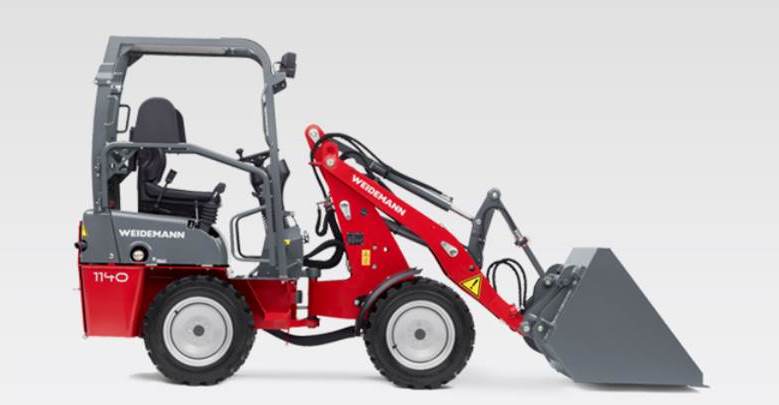

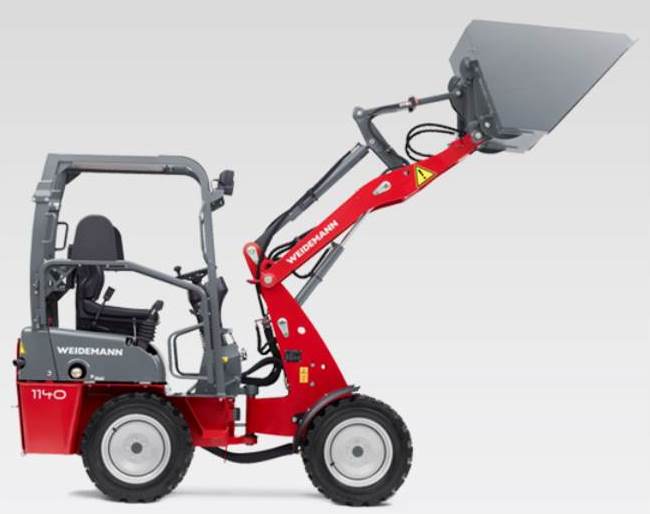

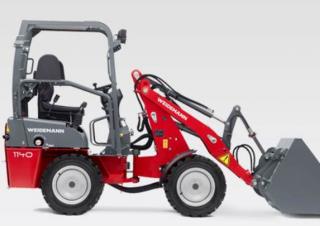

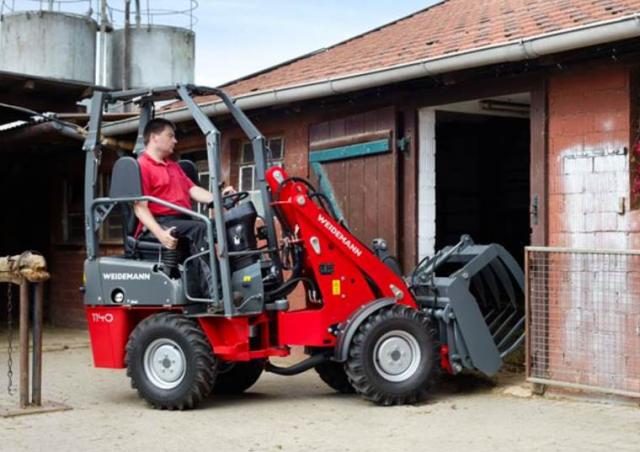

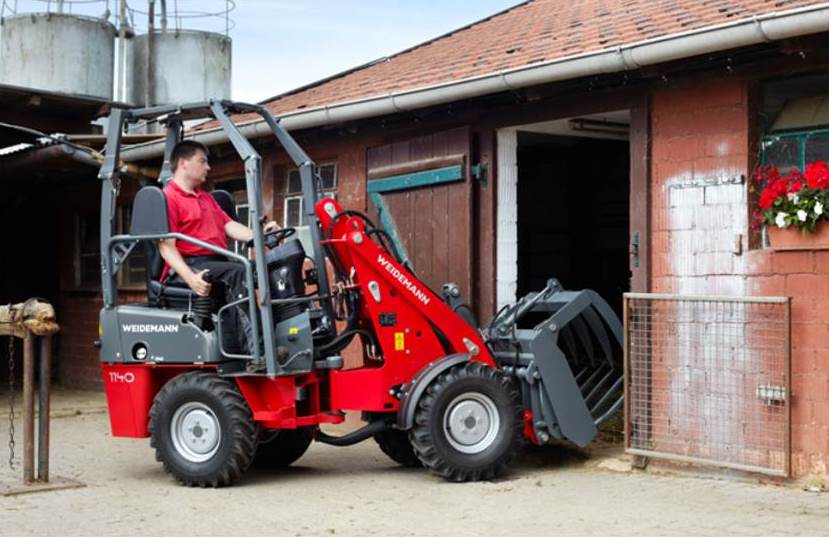

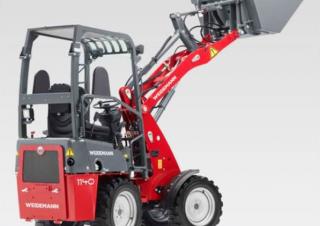

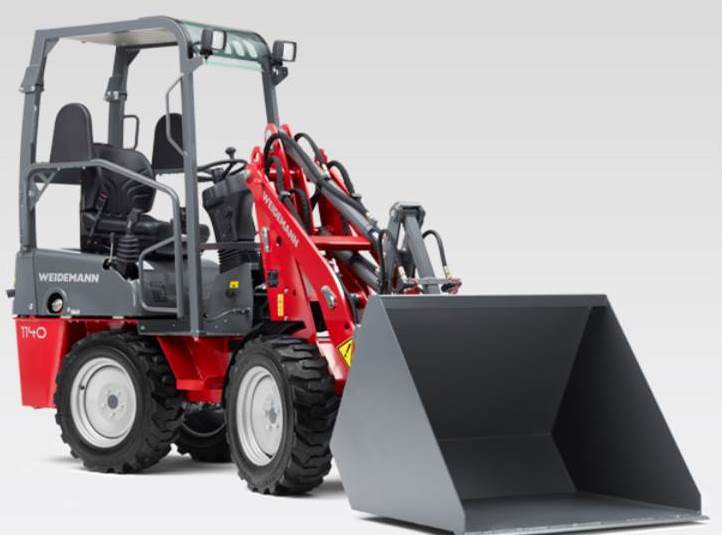

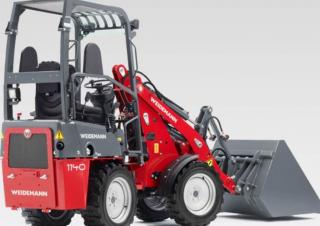

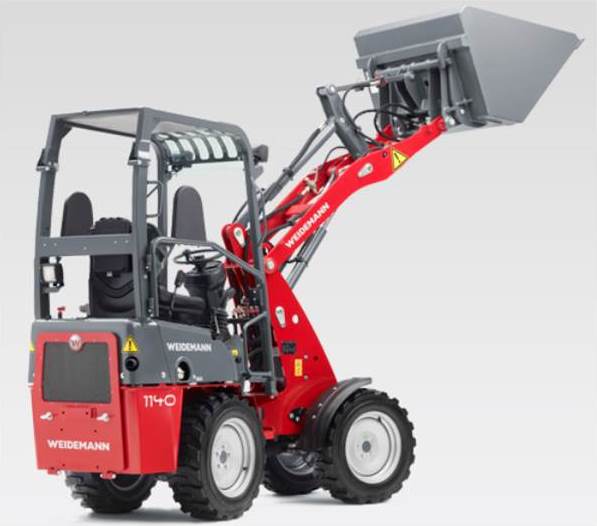

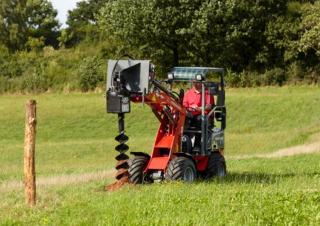

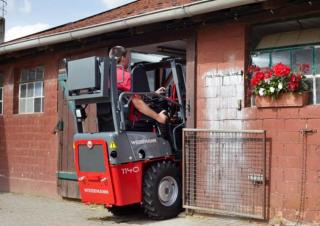

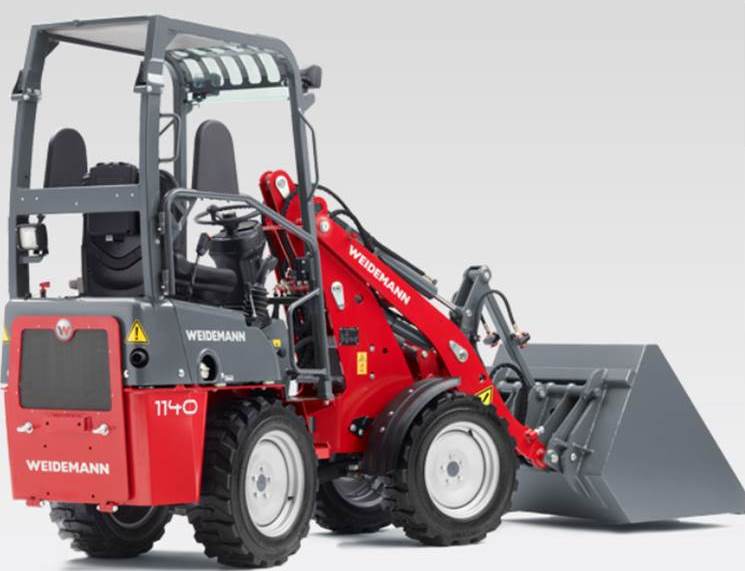

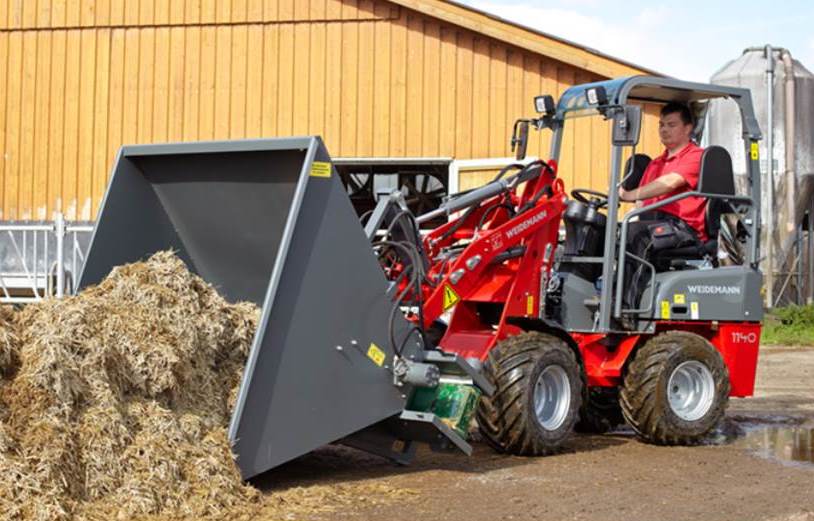

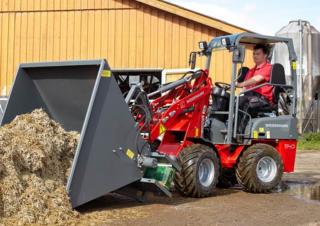

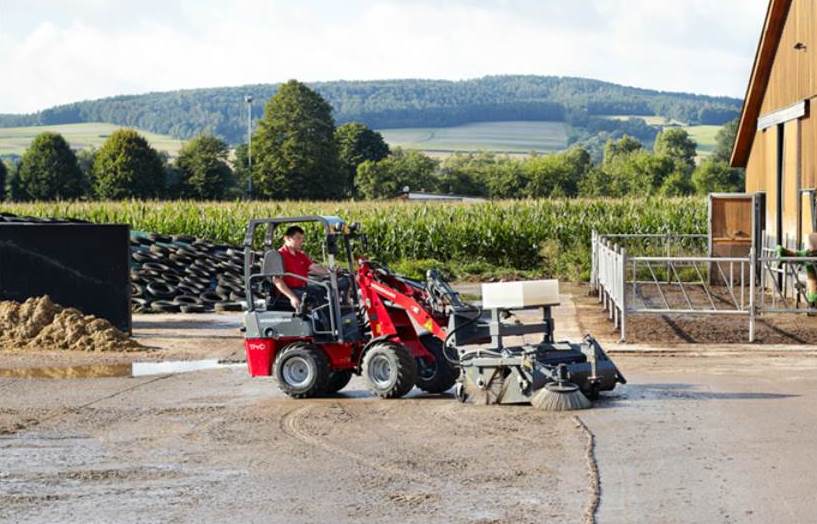

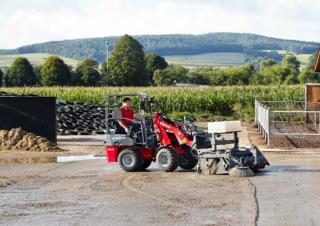

1140 Weidemann 1140 Specifications & Technical Data (2012—2019)

Weight: 1.6t – Standard tyres: 7.00-12 AS ET 40 – Tipping load: 664kg – Wheel base: 1.35m – Travel speed: 12km/h – Steering mode: KL

1140

Years of manufacture: 2012—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1140 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.6 t

Standard tyres: 7.00-12 AS ET 40

Tipping load: 664 kg

Wheel base: 1.35 m

Travel speed: 12 km/h

Steering mode: KL

Max. discharge height: 1.8 m

Turning radius outside: 2.140 m

Turning radius inside: 0.6 m

Transport length: 3 m

Transport width: 0.85 m

Transport height: 2.23 m

Engine manuf.: Perkins

Engine type: 403D-11

Engine power: 17.9 kW

Displacement: 1.13 l

Revolutions at max torque: 2800 rpm

No. of cylinders: 3

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, transmission type, transmission manufacturer, traction control, tyre - size, wheelbase, length - shovel on ground, height - over cab, ground clearance, width - over tyres, shovel - type, shovel - width, full lift dump height, full lift reach, loader - arm type, loader - geometry, dump angle - at dump, dump angle - maximum, height - pivot pin, full lift dump height - maximum, height - maximum, dig depth, turning radius - over shovel, fuel tank, straight tipping load, operating weight are available in the full technical specs.

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Weidemann 1140 FAQ

When was the Weidemann 1140 manufactured?

The Weidemann 1140 was manufactured from 2012 to 2019.

What is the weight of the Weidemann 1140 yard loader?

The Weidemann 1140 yard loader has a weight of 1.6 tonnes.

What are the transport dimensions of the Weidemann 1140 yard loader?

The Weidemann 1140 yard loader has a transport length of 3 meters, a transport width of 0.85 meters, and a transport height of 2.23 meters.

What is the travel speed of the Weidemann 1140 yard loader?

The Weidemann 1140 yard loader has a travel speed of 12 km/h.

What are the maneuverability specifications of the Weidemann 1140 yard loader?

The Weidemann 1140 yard loader features articulated-frame steering with an outside turning radius of 2.14 meters and an inside turning radius of 0.6 meters.

What are the standard tyre specifications for the Weidemann 1140?

The Weidemann 1140 is equipped with standard tyres sized 7.00-12 AS ET 40.

What is the wheelbase of the Weidemann 1140 yard loader?

The Weidemann 1140 yard loader has a wheelbase of 1.35 meters.

What is the tipping load capacity of the Weidemann 1140?

The Weidemann 1140 has a tipping load capacity of 664 kilograms.

What is the maximum discharge height of the Weidemann 1140 yard loader?

The Weidemann 1140 has a maximum discharge height of 1.8 meters.

How much is a Weidemann 1140 Yard loader (2012u20132019) worth?

The residual value of the Weidemann 1140 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
