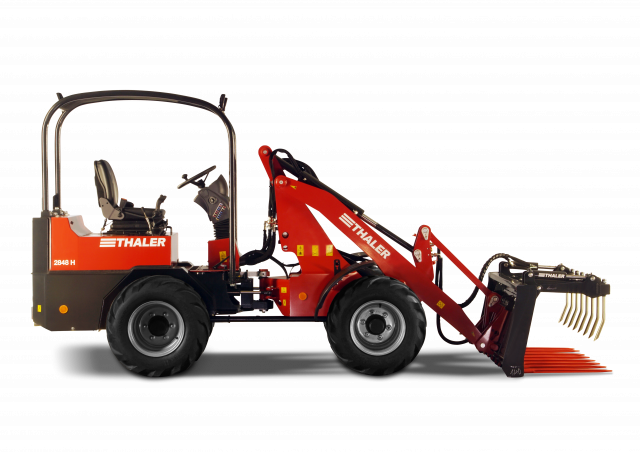

2848 H Thaler 2848 H Specifications & Technical Data (2016—2020)
Technical specs - 2848 H Thaler
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.97 t
- operating weight
- 2.17 t
- Standard tyres
- 10.0/75-15.3 AS
- Tipping load
- 1300 kg
- Wheel base
- 1.676 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 3.33 m
- Max. discharge height
- 2.59 m
- Turning radius outside
- 2.19 m
- Turning radius inside
- 0.99 m
- Transport length
- 3.55 m
- Transport width
- 1.16 m
- Transport height
- 2.21 m
- Engine manuf.
- Yanmar
- Engine type
- k.A.
- Engine power
- 35.4 kW
- Displacement
- 2.22 l
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 4
- Emission level
- IIIA
More technical details, like: overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Thaler 2848 H FAQ
What are the weight specifications for the Thaler 2848 H?
What are the transport dimensions of the Thaler 2848 H yard loader?
What is the travel speed of the Thaler 2848 H?
What are the maneuverability specifications of the Thaler 2848 H yard loader?
What are the standard tyre specifications for the Thaler 2848 H?
What is the chassis specification of the Thaler 2848 H?
What is the tipping load capacity of the Thaler 2848 H?
What are the maximum working heights of the Thaler 2848 H yard loader?
How much is a Thaler 2848 H Yard loader (2016u20132020) worth?
Buy & Rent
Compare Thaler 2848 H with similar Yard loader

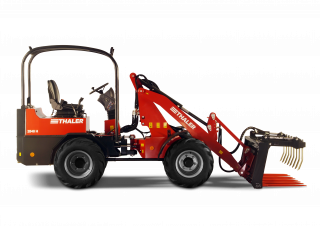

Thaler 2848 H
