2748 T Thaler 2748 T Specifications & Technical Data (2013—2020)

Weight: 2.46t – operating weight: 2.7t – Standard tyres: 400/50-15 AS – Tipping load: 1320kg – Wheel base: 1.676m – Travel speed: 20km/h

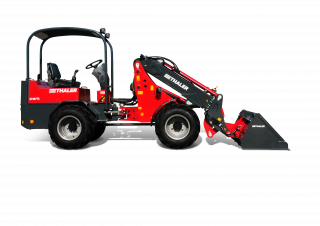

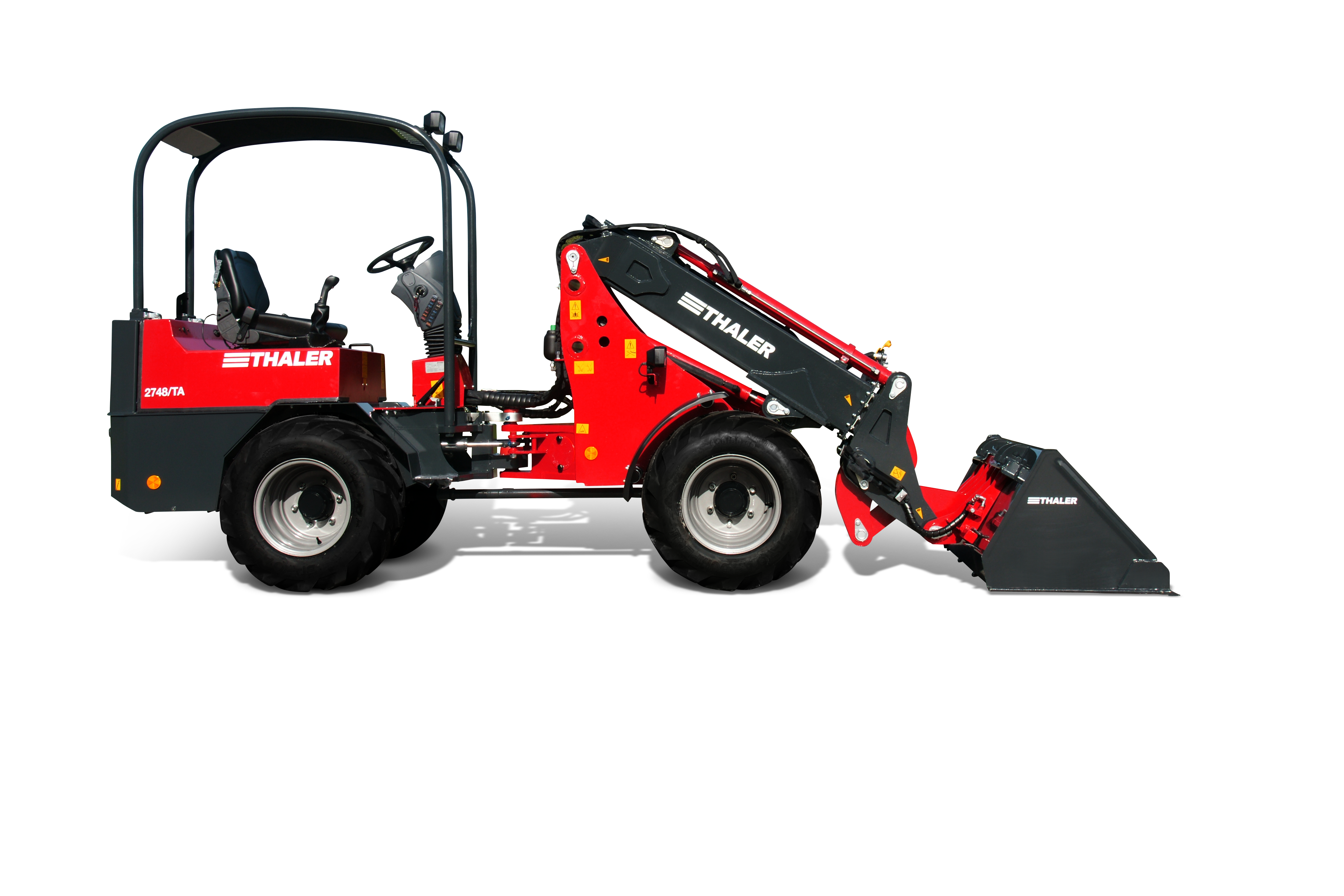

Yard loader Thaler 2748 T

Technical specs - 2748 T Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.46 t
operating weight
2.7 t
Standard tyres
400/50-15 AS
Tipping load
1320 kg
Wheel base
1.676 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
4.056 m
Overcharging height
3.897 m
Max. discharge height
3.265 m
Turning radius outside
2.43 m
Turning radius inside
0.97 m
Transport length
3.62 m
Transport width
1.38 m
Transport height
2.21 m
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
35.4 kW
Displacement
2.22 l
Revolutions at max torque
3000 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Thaler 2748 T FAQ

When was the Thaler 2748 T manufactured?

The Thaler 2748 T was manufactured from 2013 to 2020.

What are the weight specifications for the Thaler 2748 T?

The Thaler 2748 T has a standard weight of 2.46 tonnes and an operating weight of 2.7 tonnes.

What are the transport dimensions of the Thaler 2748 T yard loader?

The Thaler 2748 T has a transport length of 3.62 meters, a transport width of 1.38 meters, and a transport height of 2.21 meters.

What is the travel speed of the Thaler 2748 T?

The Thaler 2748 T has a travel speed of 20 km/h.

What are the maneuverability specifications of the Thaler 2748 T?

The Thaler 2748 T features articulated-frame steering with an outside turning radius of 2.43 meters and an inside turning radius of 0.97 meters.

What are the tyre specifications for the Thaler 2748 T?

The Thaler 2748 T is equipped with standard tyres sized 400/50-15 AS.

What is the wheel base of the Thaler 2748 T yard loader?

The Thaler 2748 T has a wheel base of 1.676 meters.

What is the tipping load capacity of the Thaler 2748 T?

The Thaler 2748 T has a tipping load capacity of 1320 kilograms.

What are the working height and reach specifications of the Thaler 2748 T?

The Thaler 2748 T has an overcharging height of 3.9 meters, a maximum discharge height of 3.27 meters, and a maximum height at the shovel pivot point of 4.06 meters.
