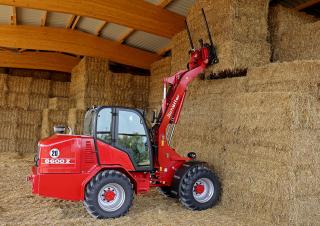

8600 Z Schäffer 8600 Z Specifications & Technical Data (2016—2018)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 8600 Z Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.95 t
- Standard tyres
- 405/70-20 PS
- Tipping load
- 4200 kg
- Wheel base
- 2.3 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- Turning radius inside
- 2.7 m
- Transport length
- 3.9 m
- Transport width
- 1.89 m
- Transport height
- 5.56 m
- Engine manuf.
- Deutz
- Engine type
- k.A.
- Engine power
- 75 kW
- Revolutions at max torque
- 2600 rpm
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, max. discharge height, turning radius outside, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Schäffer 8600 Z FAQ
What is the weight of the Schu00e4ffer 8600 Z?
What are the physical dimensions of the Schu00e4ffer 8600 Z yard loader?
What is the travel speed of the Schu00e4ffer 8600 Z yard loader?
What are the maneuverability specifications of the Schu00e4ffer 8600 Z?
What are the tyre specifications for the Schu00e4ffer 8600 Z yard loader?
What is the wheelbase of the Schu00e4ffer 8600 Z?
What is the mass capacity of the Schu00e4ffer 8600 Z yard loader?
How much is a Schu00e4ffer 8600 Z Yard loader (2016u20132018) worth?
