4670 T-3 Schäffer 4670 T-3 Specifications & Technical Data (2025—2026)

Weight: 3.9t – Standard tyres: 15.0/55-17 AS – Tipping load: 2110kg – Wheel base: 2m – Travel speed: 20km/h – Steering mode: KL

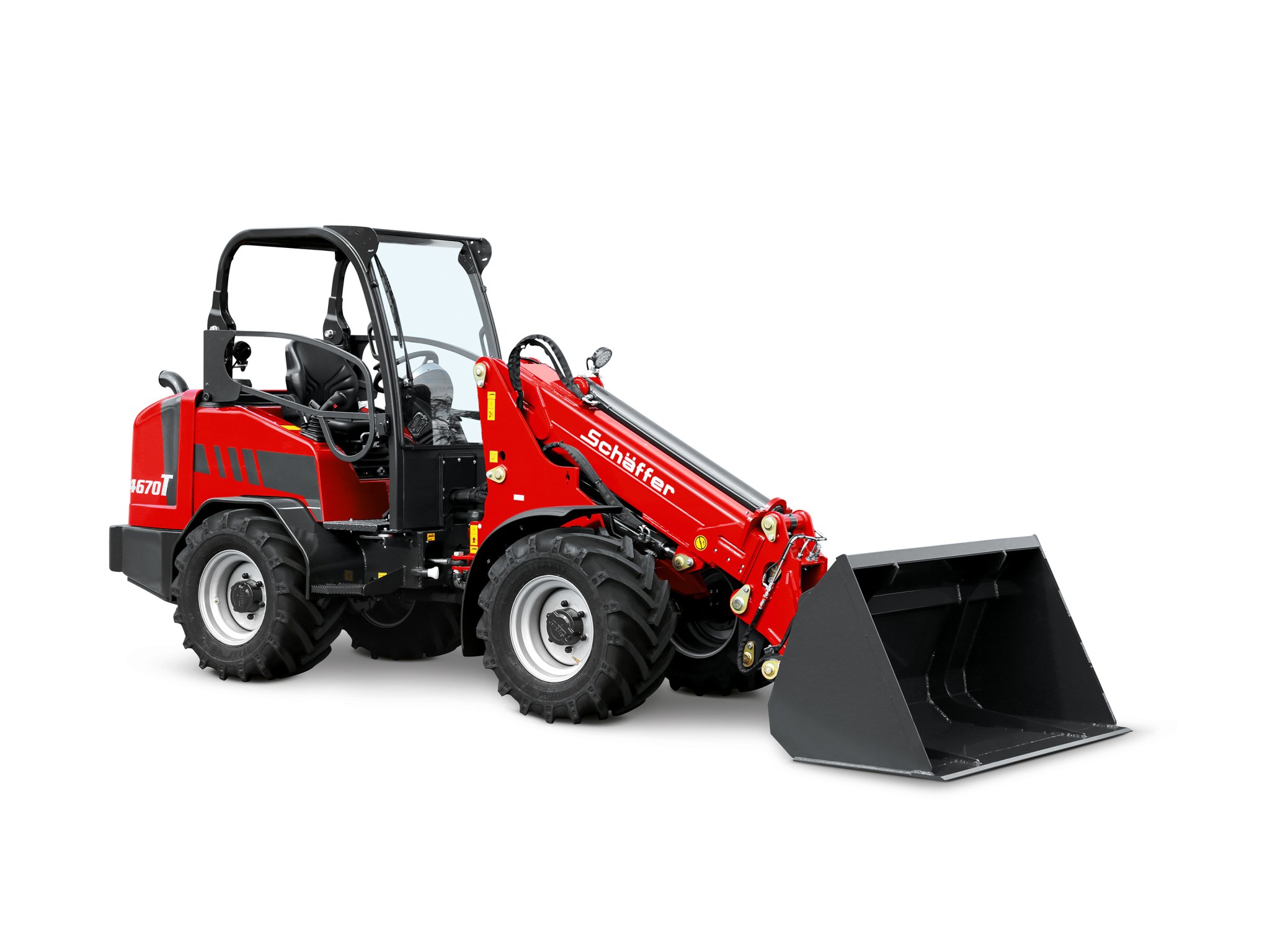

Yard loader Schäffer 4670 T-3

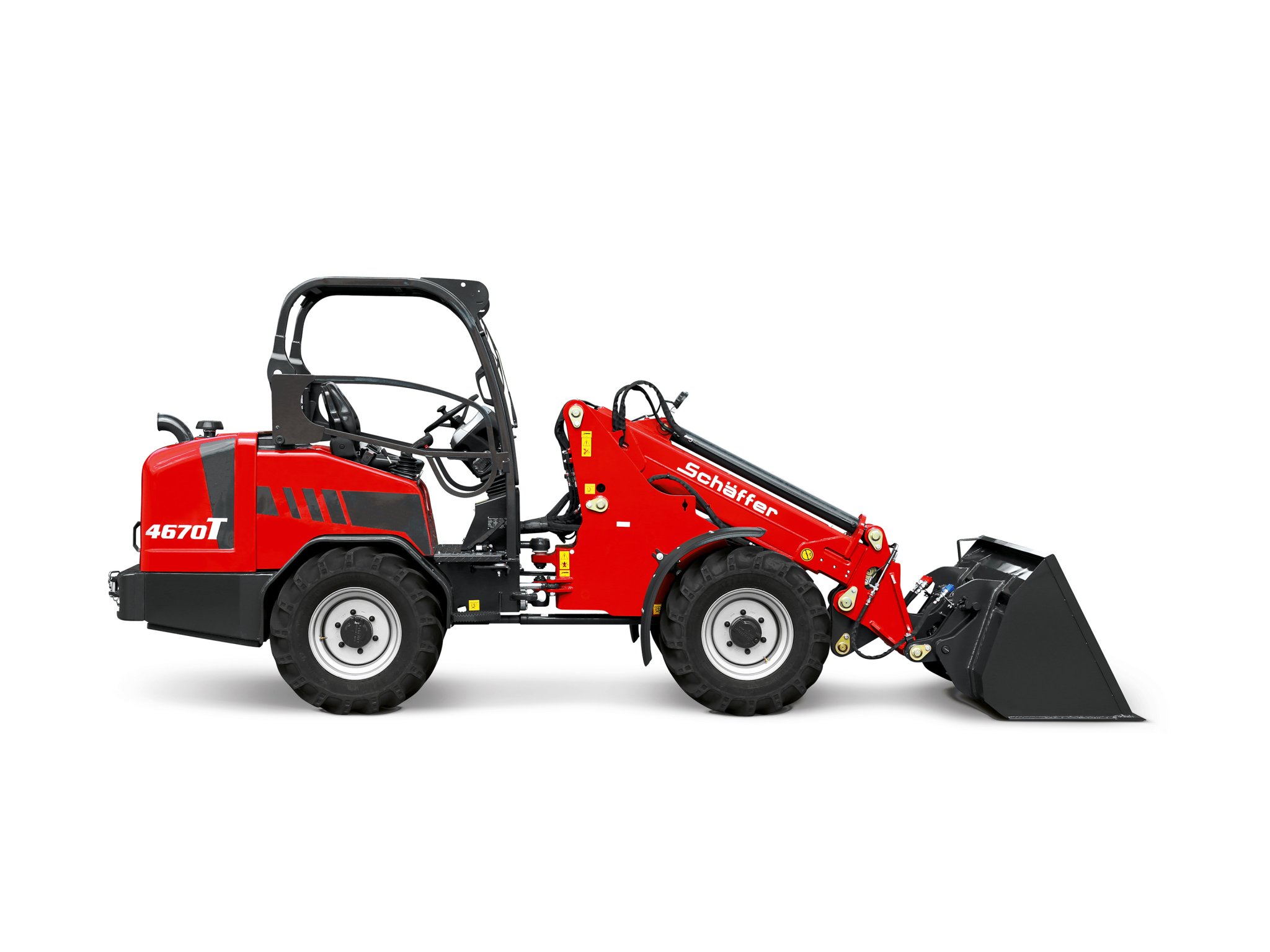

Yard loader Schäffer 4670 T-3

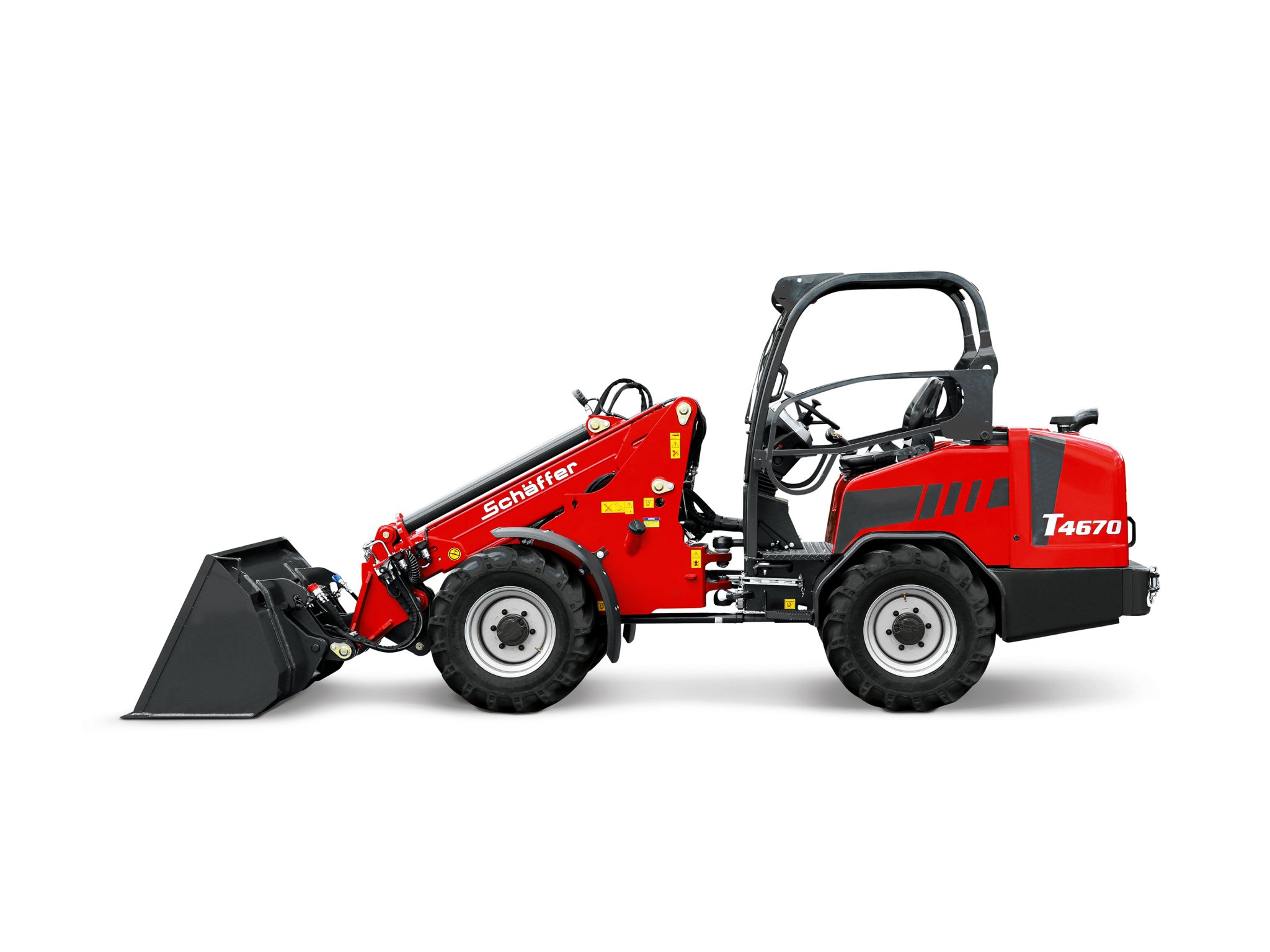

Yard loader Schäffer 4670 T-3

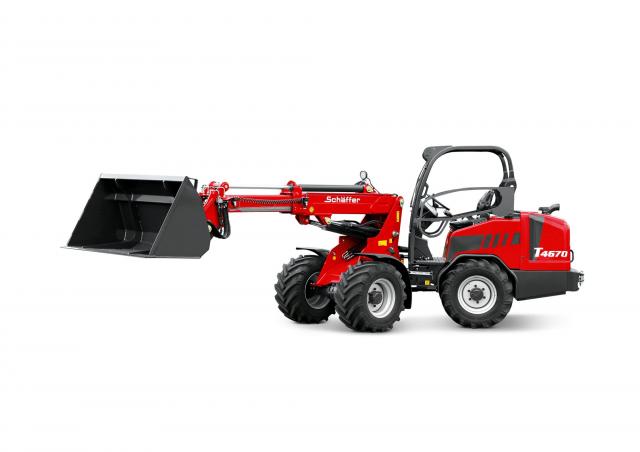

Yard loader Schäffer 4670 T-3

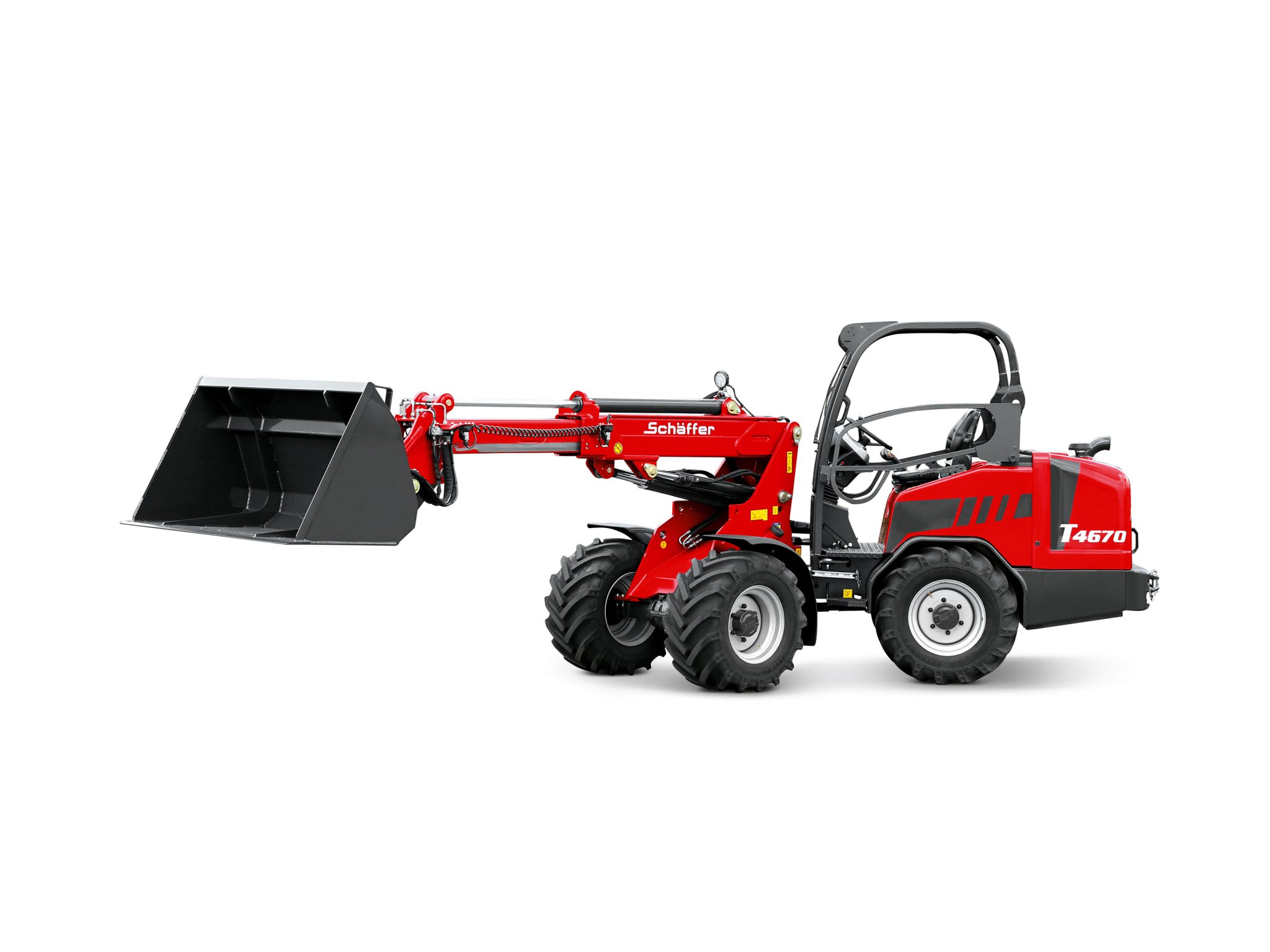

Yard loader Schäffer 4670 T-3

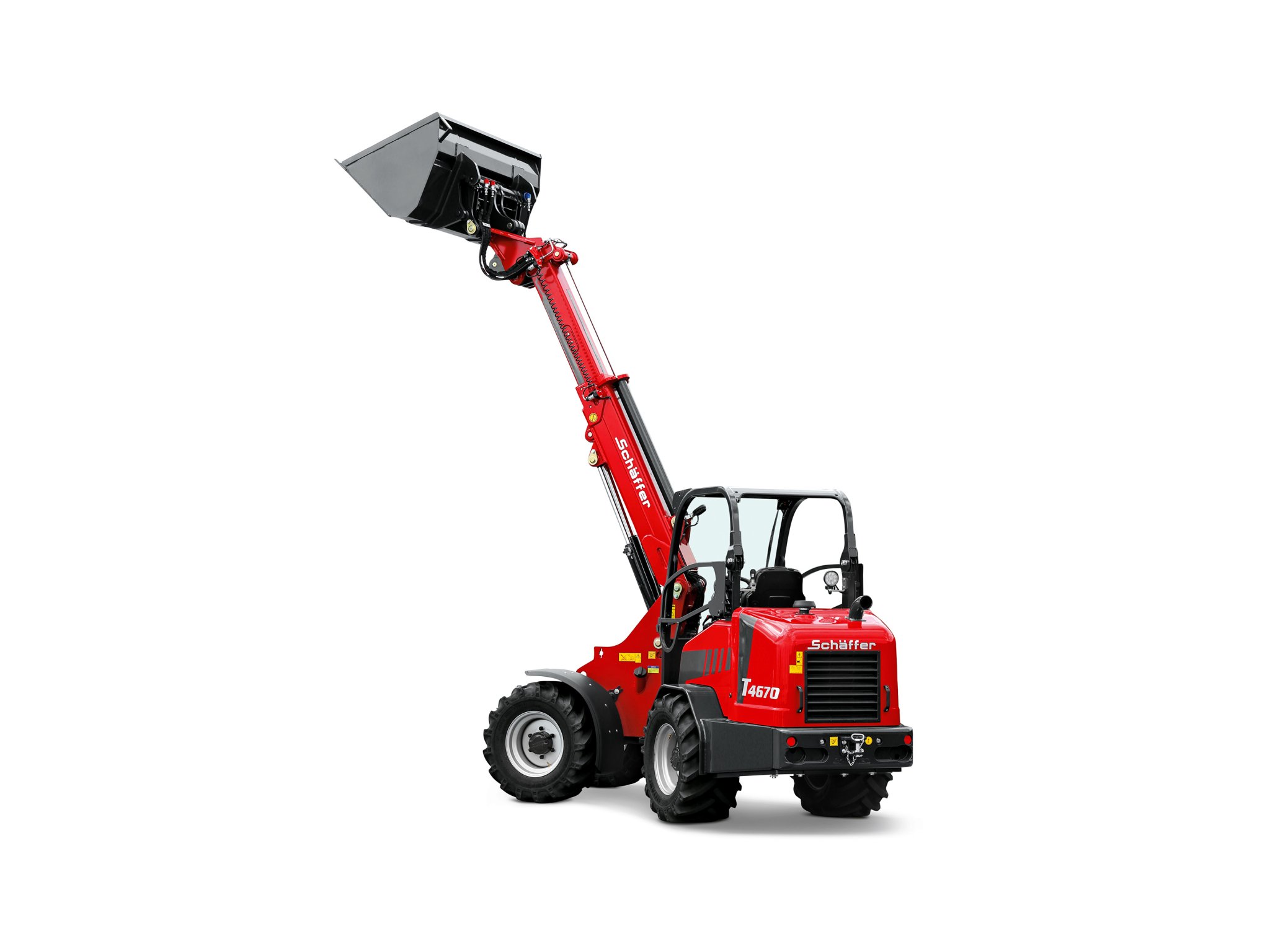

Yard loader Schäffer 4670 T-3
Yard loader Schäffer 4670 T-3
Yard loader Schäffer 4670 T-3
Yard loader Schäffer 4670 T-3
Yard loader Schäffer 4670 T-3

Technical specs - 4670 T-3 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.9 t
Standard tyres
15.0/55-17 AS
Tipping load
2110 kg
Wheel base
2 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
4.3 m
Overcharging height
4.08 m
Max. discharge height
3.48 m
Turning radius outside
3.425 m
Turning radius inside
1.425 m
Transport length
4.93 m
Transport width
1.73 m
Transport height
2.27 m
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
48.6 kW
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 4670 T-3 FAQ

When did production of the Schu00e4ffer 4670 T-3 start?

The Schu00e4ffer 4670 T-3 was first produced in 2025.

What is the weight of the Schu00e4ffer 4670 T-3 yard loader?

The Schu00e4ffer 4670 T-3 yard loader has a weight of 3.9 tonnes.

What are the physical dimensions of the Schu00e4ffer 4670 T-3 yard loader?

The Schu00e4ffer 4670 T-3 has a transport length of 4.93 meters, a transport width of 1.73 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 4670 T-3 yard loader?

The Schu00e4ffer 4670 T-3 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 4670 T-3?

The Schu00e4ffer 4670 T-3 features articulated-frame steering and has an outside turning radius of 3.425 meters.

What are the tyre specifications for the Schu00e4ffer 4670 T-3 yard loader?

The Schu00e4ffer 4670 T-3 yard loader is equipped with standard tyres sized 15.0/55-17 AS.

What is the maximum discharge height of the Schu00e4ffer 4670 T-3 yard loader?

The Schu00e4ffer 4670 T-3 has a maximum discharge height of 3.48 meters.

How much is a Schu00e4ffer 4670 T-3 Yard loader (2025u20132025) worth?

The residual value of the Schu00e4ffer 4670 T-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
