2628 Schäffer 2628 Specifications & Technical Data (2025—2026)

Weight: 1.85t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1191kg – Wheel base: 1.445m – Travel speed: 20km/h – Steering mode: KL

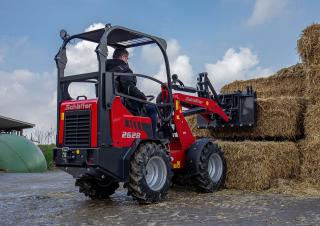

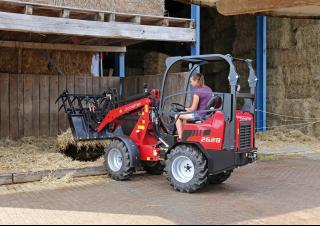

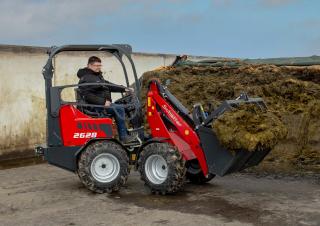

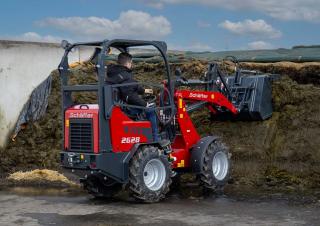

Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628
Yard loader Schäffer 2628

Technical specs - 2628 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.85 t
Standard tyres
10.0/75-15.3 AS
Tipping load
1191 kg
Wheel base
1.445 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
2.88 m
Overcharging height
2.75 m
Max. discharge height
2.17 m
Turning radius outside
2.33 m
Turning radius inside
0.82 m
Transport length
3.55 m
Transport width
1.26 m
Transport height
2.2 m
Engine manuf.
Kubota
Engine type
D1105
Engine power
18.5 kW
No. of cylinders
3
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)
