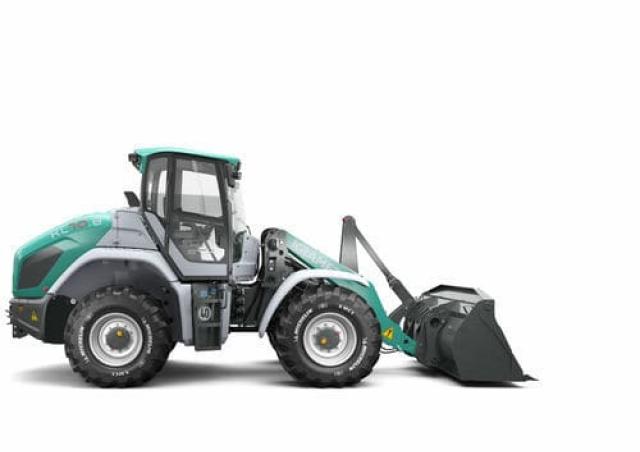

KL70.8L Kramer KL70.8L Specifications & Technical Data (2019—2026)
Technical specs - KL70.8L Kramer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- operating weight
- 11.22 t
- Standard tyres
- 500/70 R24
- Tipping load
- 5600 kg
- Wheel base
- 2.62 m
- Travel speed
- 20 km/h
- Steering mode
- A
- max. height at the shovel pivot point
- 4.2 m
- Overcharging height
- 3.95 m
- Max. discharge height
- 3.21 m
- Turning radius outside
- 3.865 m
- Transport length
- 7.04 m
- Transport width
- 2.5 m
- Transport height
- 3.06 m
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.04 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 609/1500 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 101x126 mm
- Emission level
- EU V
More technical details, like: weight, turning radius inside, model series, dimension lxwxh are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
