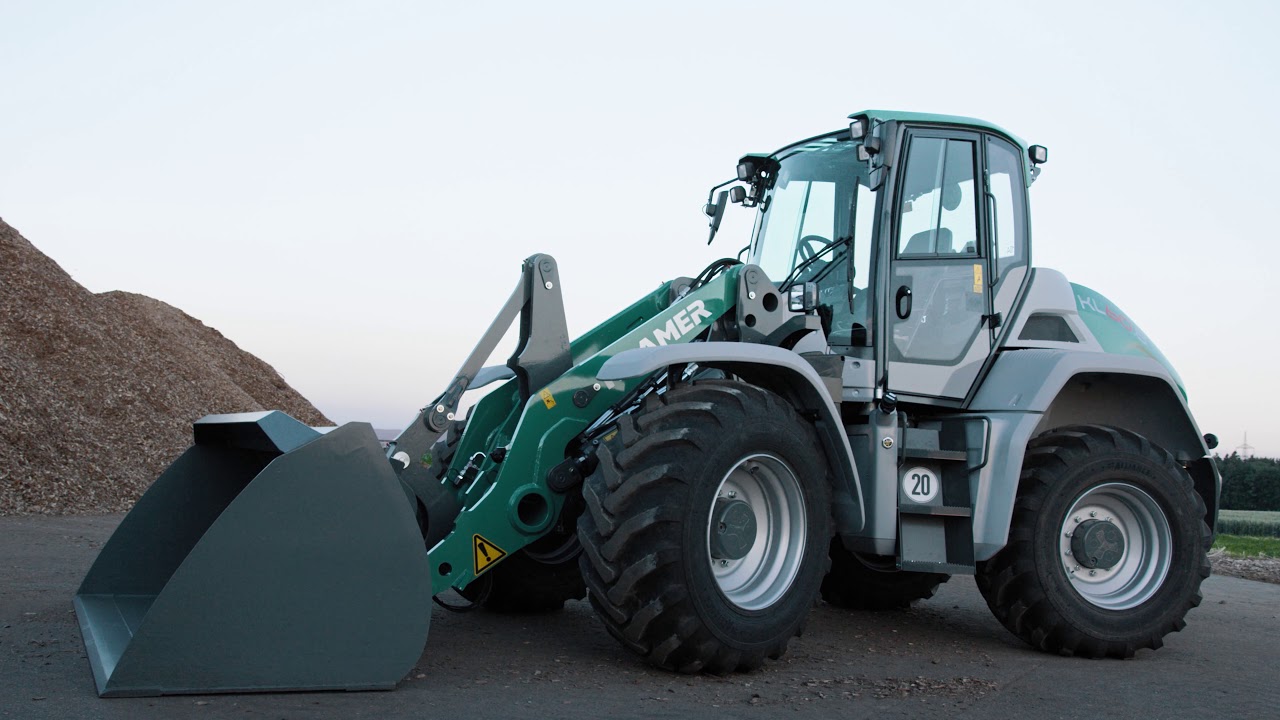

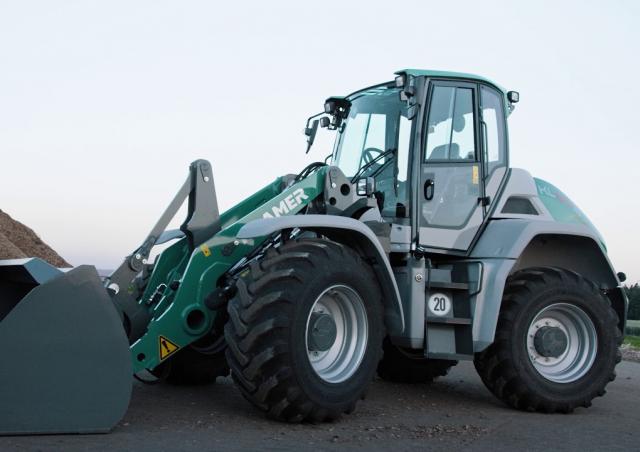

KL60.8L Kramer KL60.8L Specifications & Technical Data (2019—2026)

operating weight: 10.5t – Standard tyres: 500/70 R24 – Tipping load: 5300kg – Wheel base: 2.62m – Travel speed: 20km/h – Steering mode: A

KL60.8L

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - KL60.8L Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight: 10.5 t

Standard tyres: 500/70 R24

Tipping load: 5300 kg

Wheel base: 2.62 m

Travel speed: 20 km/h

Steering mode: A

max. height at the shovel pivot point: 4.2 m

Overcharging height: 4.025 m

Max. discharge height: 3.165 m

Turning radius outside: 3.865 m

Transport length: 7.04 m

Transport width: 2.5 m

Transport height: 3.06 m

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 100 kW

Emission level: EU V

More technical details, like: weight, turning radius inside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer KL60.8L FAQ

When did production of the Kramer KL60.8L start?

The Kramer KL60.8L was first produced in 2019.

What is the operating weight of the Kramer KL60.8L?

The Kramer KL60.8L has an operating weight of 10.5 tonnes.

What are the transport dimensions of the Kramer KL60.8L yard loader?

The Kramer KL60.8L has a transport length of 7.04 meters, a transport width of 2.5 meters, and a transport height of 3.06 meters.

What is the travel speed of the Kramer KL60.8L yard loader?

The Kramer KL60.8L yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Kramer KL60.8L yard loader?

The Kramer KL60.8L yard loader features all-wheel steering and has an outside turning radius of 3.865 meters.

What are the tyre specifications for the Kramer KL60.8L yard loader?

The Kramer KL60.8L is equipped with standard tyres sized 500/70 R24.

What is the wheelbase of the Kramer KL60.8L?

The Kramer KL60.8L has a wheelbase of 2.62 meters.

What is the mass capacity of the Kramer KL60.8L yard loader?

The Kramer KL60.8L has a tipping load capacity of 5300 kilograms.

What are the working height and reach specifications of the Kramer KL60.8L yard loader?

The Kramer KL60.8L has an overcharging height of 4.03 meters, a maximum discharge height of 3.17 meters, and a maximum height at the shovel pivot point of 4.2 meters.

How much is a Kramer KL60.8L Yard loader (2019u20132025) worth?

The residual value of the Kramer KL60.8L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
