KL41.8 Kramer KL41.8 Specifications & Technical Data (2019—2026)

operating weight: 5.5t – Standard tyres: 16/70-20 – Tipping load: 4100kg – Wheel base: 2.15m – Travel speed: 20km/h – Steering mode: A

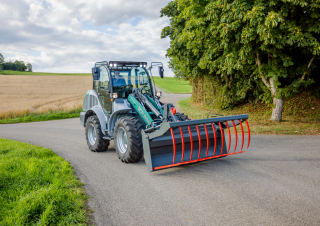

Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8
Yard loader Kramer KL41.8

Technical specs - KL41.8 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight
5.5 t
Standard tyres
16/70-20
Tipping load
4100 kg
Wheel base
2.15 m
Travel speed
20 km/h
Steering mode
A
max. height at the shovel pivot point
3.359 m
Overcharging height
3.124 m
Max. discharge height
2.621 m
Turning radius outside
2.95 m
Transport length
5.71 m
Transport width
1.92 m
Transport height
2.65 m
Engine manuf.
Deutz
Engine type
TCD2.9
Engine power
55.4 kW
Displacement
2.924 l
Max. torque
300/1600 Nm
Emission level
V

More technical details, like: weight, turning radius inside, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kramer KL41.8 FAQ

When did production of the Kramer KL41.8 start?

The Kramer KL41.8 was first produced in 2019.

What is the operating weight of the Kramer KL41.8?

The Kramer KL41.8 has an operating weight of 5.5 tonnes.

What are the physical dimensions of the Kramer KL41.8 yard loader?

The Kramer KL41.8 has a transport length of 5.71 meters, a transport width of 1.92 meters, and a transport height of 2.65 meters.

What is the travel speed of the Kramer KL41.8 yard loader?

The Kramer KL41.8 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Kramer KL41.8?

The Kramer KL41.8 features all-wheel steering and has an outside turning radius of 2.95 meters.

What are the tyre specifications for the Kramer KL41.8?

The Kramer KL41.8 is equipped with standard tyres sized 16/70-20.

What is the wheelbase of the Kramer KL41.8 yard loader?

The Kramer KL41.8 yard loader has a wheelbase of 2.15 meters.

What is the tipping load capacity of the Kramer KL41.8?

The Kramer KL41.8 has a tipping load capacity of 4100 kilograms.

What are the working height and reach specifications of the Kramer KL41.8 yard loader?

The Kramer KL41.8 has an overcharging height of 3.12 meters, a maximum discharge height of 2.62 meters, and a maximum height at the shovel pivot point of 3.36 meters.

How much is a Kramer KL41.8 Yard loader (2019u20132025) worth?

The residual value of the Kramer KL41.8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
