KL37.8T Kramer KL37.8T Specifications & Technical Data (2024—2026)

operating weight: 6.8t – Tipping load: 3.7kg – Wheel base: 2.02m – Travel speed: 20km/h – Steering mode: A – max. height at the shovel pivot point: 4.84m

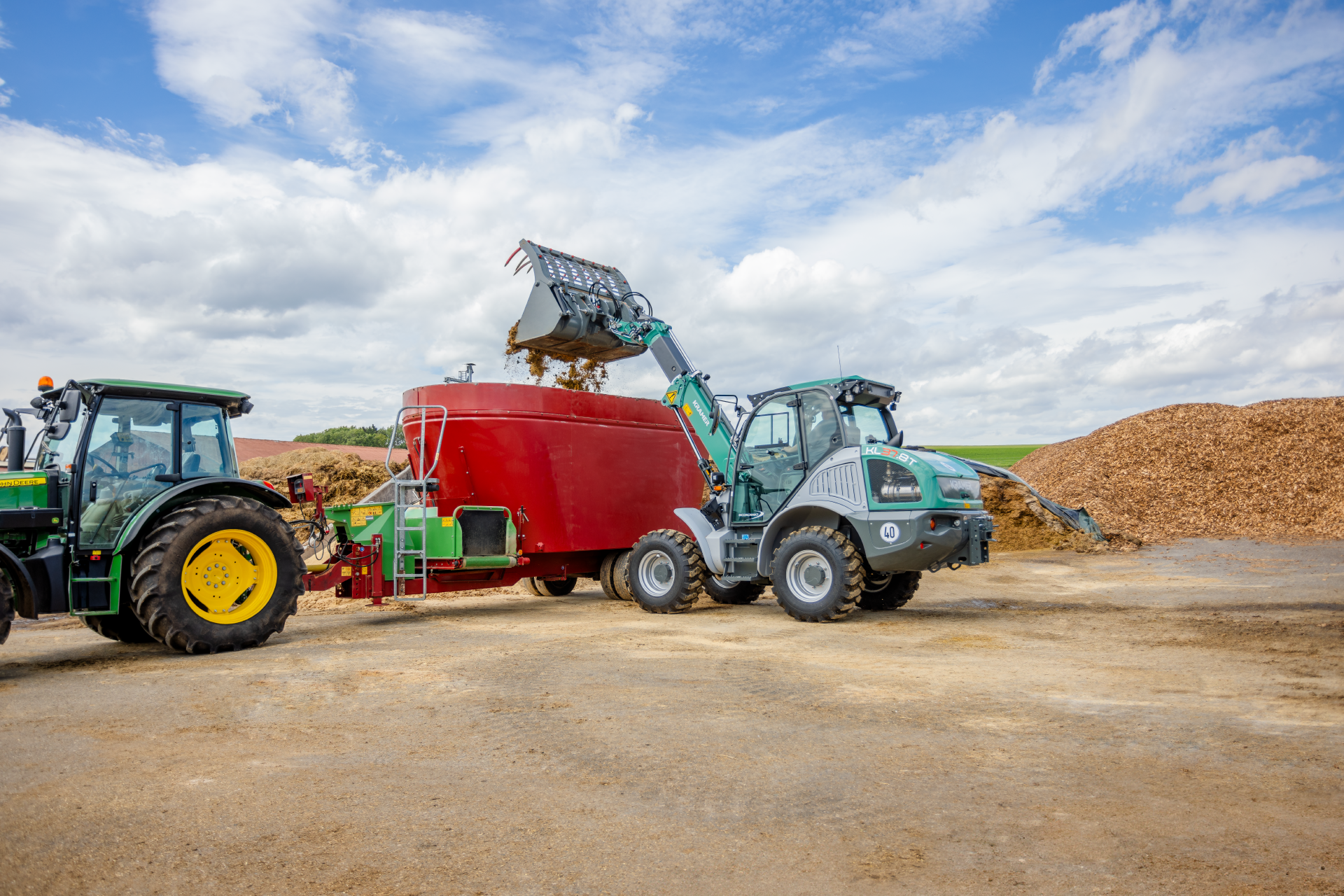

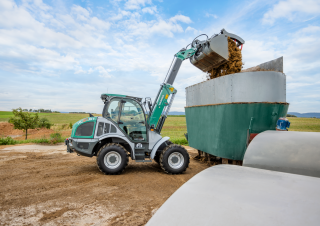

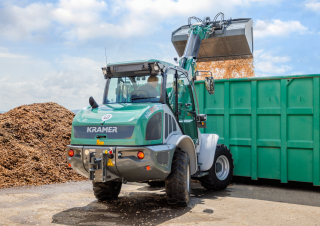

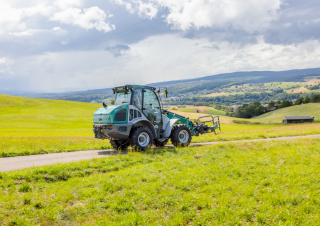

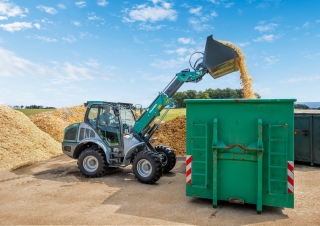

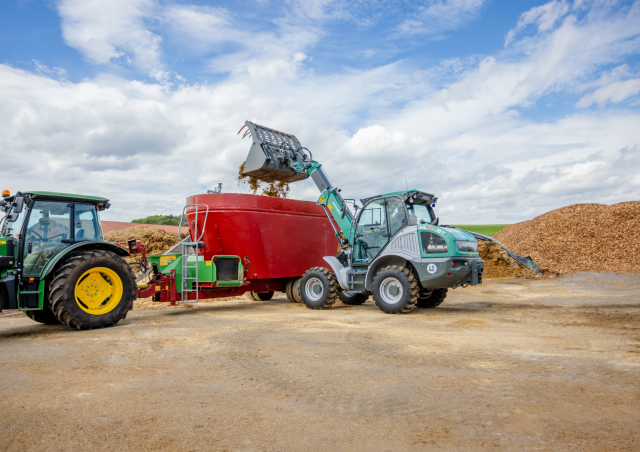

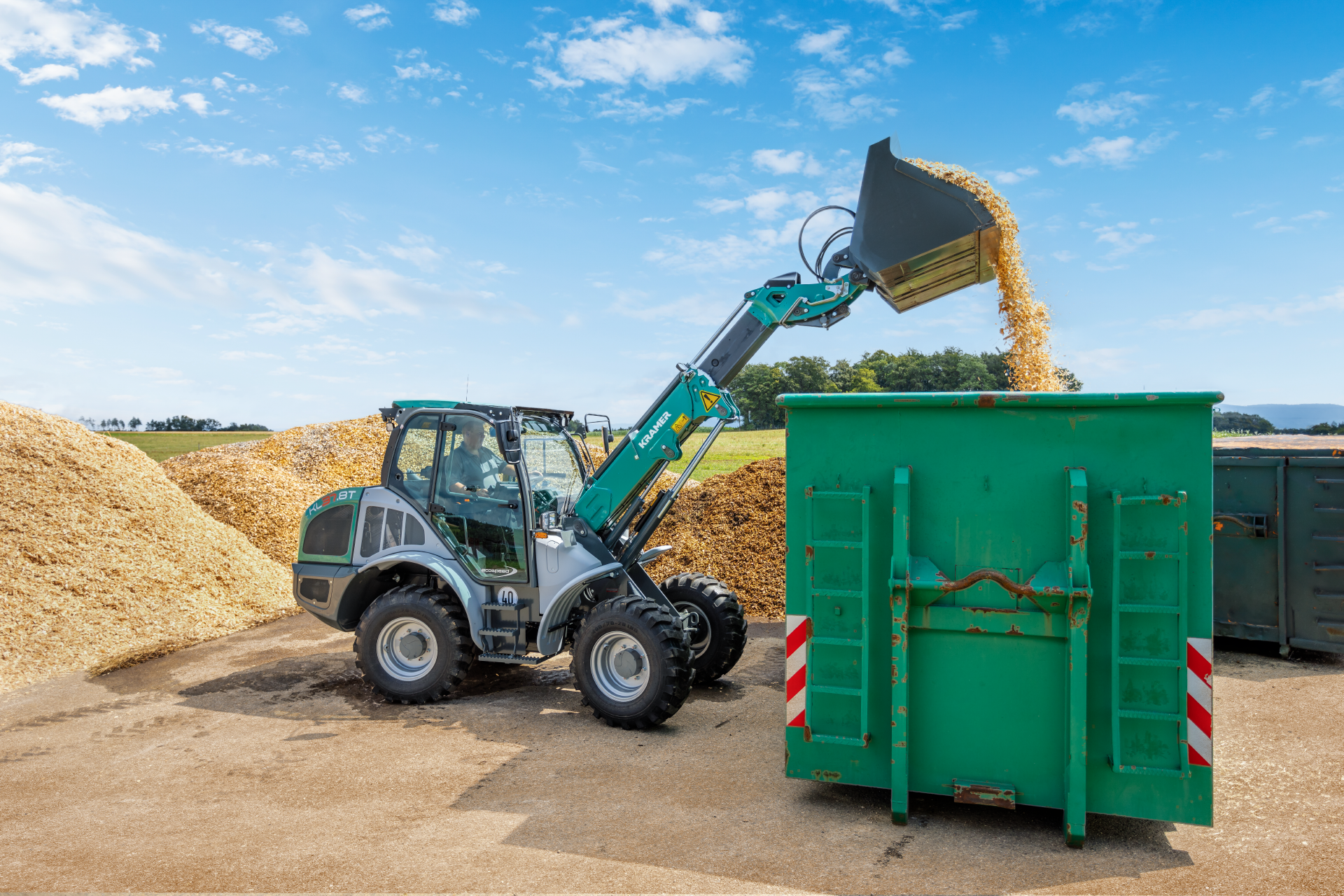

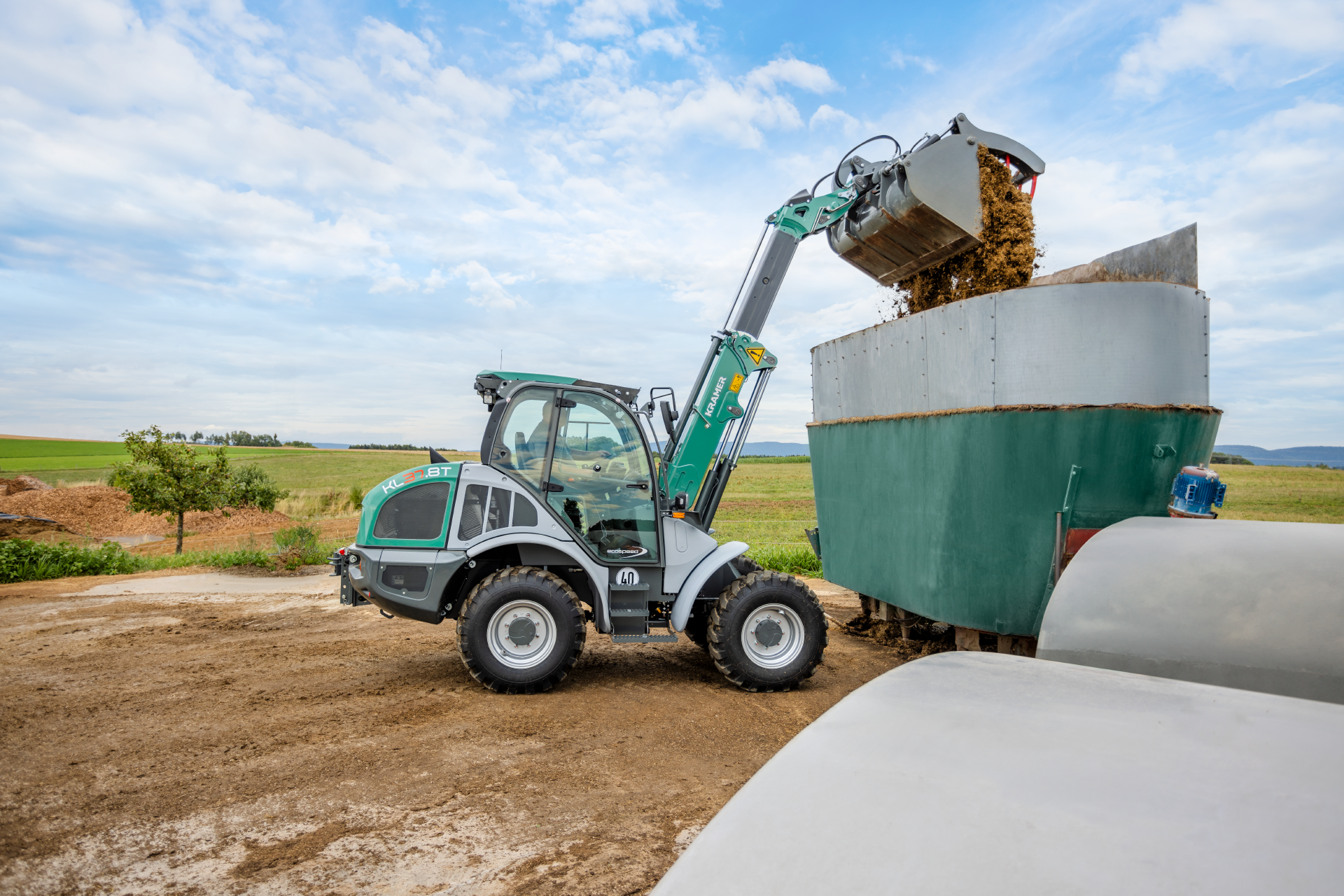

Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T
Yard loader Kramer KL37.8T

Technical specs - KL37.8T Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight
6.8 t
Tipping load
3.7 kg
Wheel base
2.02 m
Travel speed
20 km/h
Steering mode
A
max. height at the shovel pivot point
4.84 m
Overcharging height
4.63 m
Max. discharge height
4.12 m
Turning radius outside
2.99 m
Transport length
6.133 m
Transport width
1.97 m
Transport height
2.925 m
Engine manuf.
Deutz
Engine type
TCD2.9
Engine power
55.4 kW
Displacement
2.924 l
Max. torque
300/1600 Nm
Emission level
V

More technical details, like: weight, standard tyres, turning radius inside, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kramer KL37.8T FAQ

When was the Kramer KL37.8T first produced?

The Kramer KL37.8T was first produced in 2024.

What is the operating weight of the Kramer KL37.8T?

The Kramer KL37.8T has an operating weight of 6.8 tonnes.

What are the physical dimensions of the Kramer KL37.8T yard loader?

The Kramer KL37.8T has a transport length of 6.133 meters, a transport width of 1.97 meters, and a transport height of 2.925 meters.

What is the travel speed of the Kramer KL37.8T yard loader?

The Kramer KL37.8T yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Kramer KL37.8T?

The Kramer KL37.8T features all-wheel steering and has an outside turning radius of 2.99 meters.

What is the wheelbase of the Kramer KL37.8T yard loader?

The Kramer KL37.8T has a wheelbase of 2.02 meters.

What is the mass capacity of the Kramer KL37.8T yard loader?

The Kramer KL37.8T has a tipping load of 3.7 kilograms.

What are the working height and reach specifications of the Kramer KL37.8T yard loader?

The Kramer KL37.8T has an overcharging height of 4.63 meters, a maximum discharge height of 4.12 meters, and a maximum height at the shovel pivot point of 4.84 meters.

How much is a Kramer KL37.8T Yard loader (2024u20132025) worth?

The residual value of the Kramer KL37.8T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
