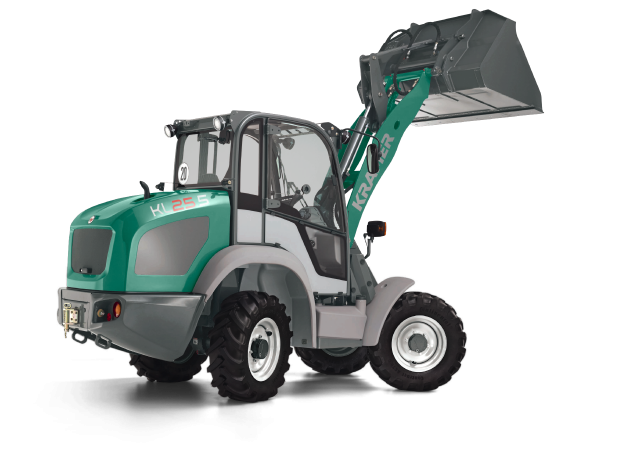

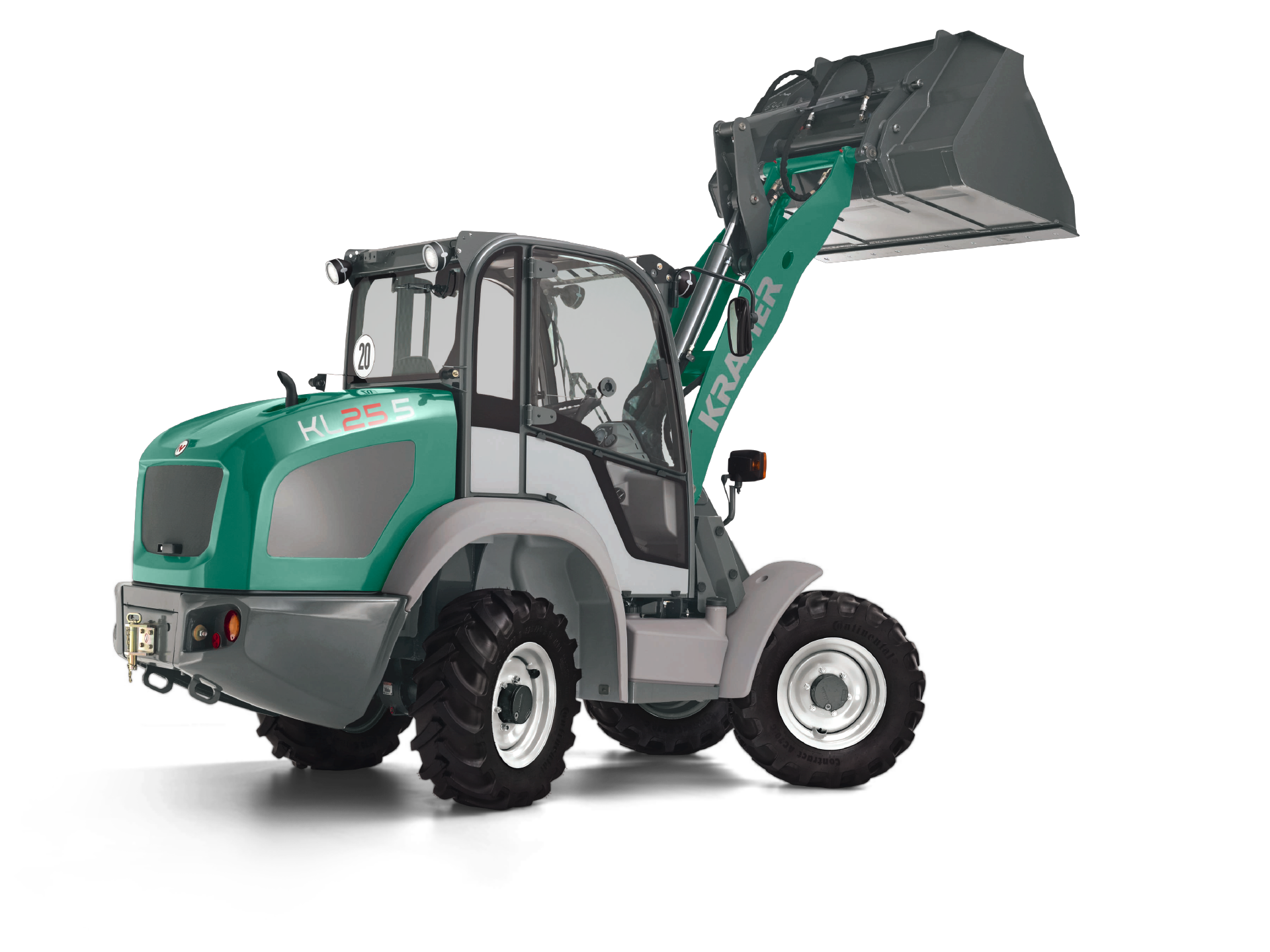

Kramer KL25.5T
- operating weight:
- 4.35 t
- Standard tyres:
- 12.0-18
- Tipping load:
- 2500 kg
- Wheel base:
- 2 m
Kramer KL25.5T Specifications & Technical Data (2019-2025)
.png)
Technical specs - KL25.5T Kramer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- operating weight
- 4.35 t
- Standard tyres
- 12.0-18
- Tipping load
- 2500 kg
- Wheel base
- 2 m
- Travel speed
- 20 km/h
- Steering mode
- A
- max. height at the shovel pivot point
- 4.27 m
- Overcharging height
- 4.01 m
- Max. discharge height
- 3.5 m
- Turning radius outside
- 2.9 m
- Transport length
- 5.35 m
- Transport width
- 1.595 m
- Transport height
- 2.47 m
- Engine manuf.
- Yanmar
- Engine type
- 4TNV88C
- Engine power
- 34 kW
- Displacement
- 2.19 l
- Revolutions at max torque
- 1950 rpm
- Max. torque
- 140 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- V
More technical details, like: weight, turning radius inside, model series, dimension lxwxh are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
