KL12.5 Kramer KL12.5 Specifications & Technical Data (2020—2026)

operating weight: 1.92t – Standard tyres: 27x10.5-15 – Tipping load: 1200kg – Wheel base: 1.525m – Travel speed: 20km/h – Steering mode: A

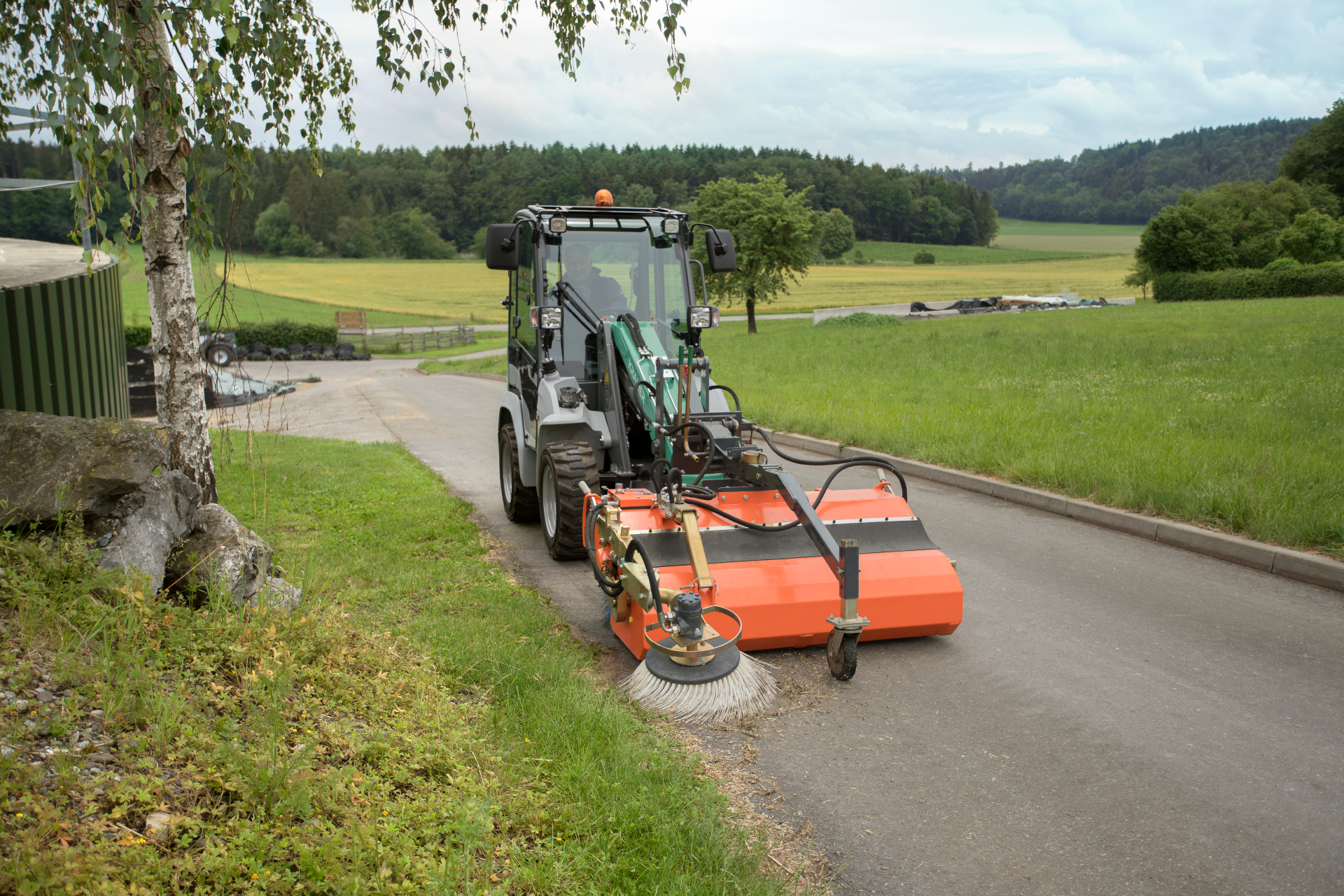

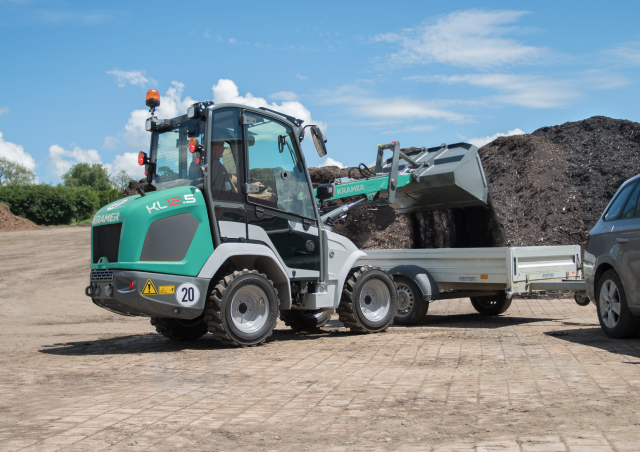

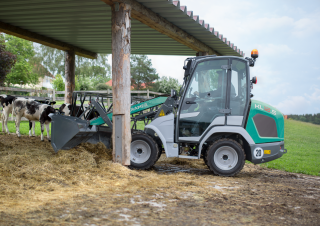

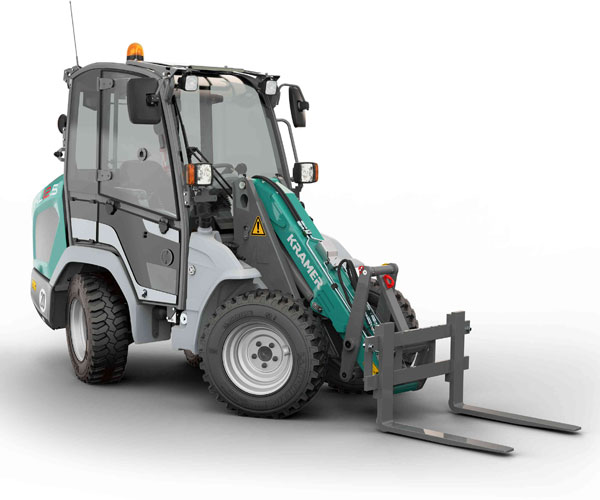

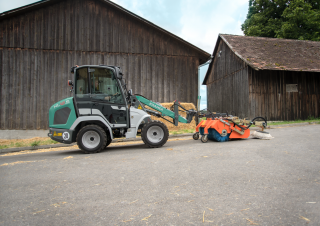

Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5
Yard loader Kramer KL12.5

Technical specs - KL12.5 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight
1.92 t
Standard tyres
27x10.5-15
Tipping load
1200 kg
Wheel base
1.525 m
Travel speed
20 km/h
Steering mode
A
max. height at the shovel pivot point
2.8 m
Overcharging height
2.68 m
Max. discharge height
2.29 m
Turning radius outside
1.95 m
Transport length
4.05 m
Transport width
1.26 m
Transport height
2.17 m
Engine manuf.
Yanmar
Engine type
3TNV82A
Engine power
18.5 kW
Displacement
1.331 l
Revolutions at max torque
2500 rpm
Max. torque
85.5/1200 Nm
No. of cylinders
3
Cylinder bore x stroke
82x84 mm
Emission level
V

More technical details, like: weight, turning radius inside, model series, dimension lxwxh are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kramer KL12.5 FAQ

When did production of the Kramer KL12.5 start?

The Kramer KL12.5 was first produced in 2020.

What is the operating weight of the Kramer KL12.5?

The Kramer KL12.5 has an operating weight of 1.92 tonnes.

What are the physical dimensions of the Kramer KL12.5 yard loader?

The Kramer KL12.5 yard loader has a transport length of 4.05 meters, a transport width of 1.26 meters, and a transport height of 2.17 meters.

What is the travel speed of the Kramer KL12.5 yard loader?

The Kramer KL12.5 has a travel speed of 20 km/h.

What are the maneuverability specifications of the Kramer KL12.5 yard loader?

The Kramer KL12.5 yard loader features all-wheel steering and has an outside turning radius of 1.95 meters.

What are the standard tyre specifications for the Kramer KL12.5 yard loader?

The Kramer KL12.5 yard loader is equipped with standard tyres sized 27x10.5-15.

What is the wheelbase of the Kramer KL12.5 yard loader?

The Kramer KL12.5 yard loader has a wheelbase of 1.525 meters.

What is the tipping load capacity of the Kramer KL12.5?

The Kramer KL12.5 has a tipping load capacity of 1200 kilograms.

What are the working height and reach specifications of the Kramer KL12.5 yard loader?

The Kramer KL12.5 has an overcharging height of 2.68 meters, a maximum discharge height of 2.29 meters, and a maximum height at the shovel pivot point of 2.8 meters.

How much is a Kramer KL12.5 Yard loader (2020u20132025) worth?

The residual value of the Kramer KL12.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
