542-70 AGRI Pro JCB 542-70 AGRI Pro Specifications & Technical Data (2021—2026)

Weight: 8.84t – Standard tyres: 500/70 R24 – Wheel base: 2.75m – Travel speed: 50km/h – Steering mode: A – Overcharging height: 6.3m

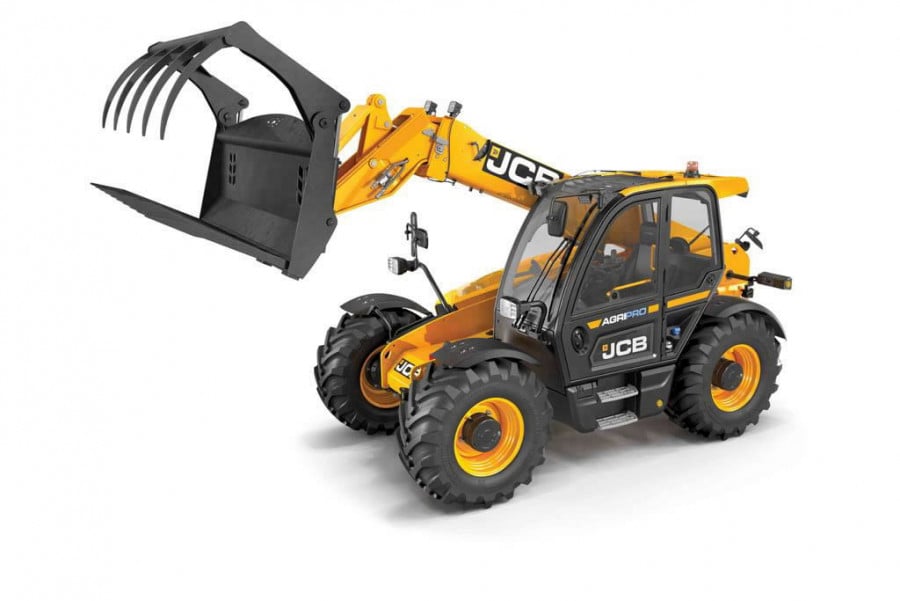

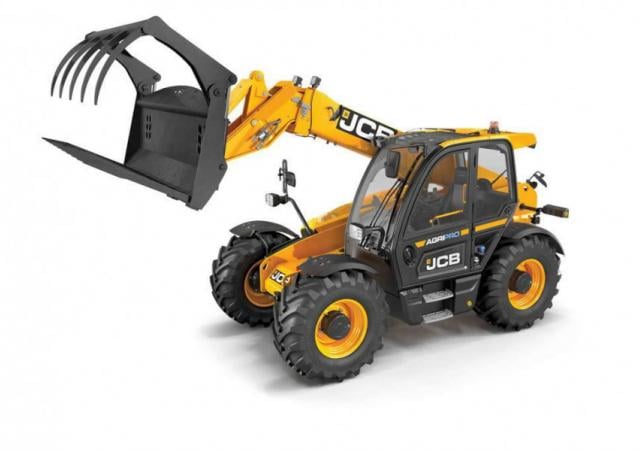

Yard loader JCB 542-70 AGRI Pro

Visit JCB live at

Technical specs - 542-70 AGRI Pro JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.84 t
Standard tyres
500/70 R24
Wheel base
2.75 m
Travel speed
50 km/h
Steering mode
A
Overcharging height
6.3 m
Turning radius outside
4.4 m
Transport length
5.07 m
Transport width
2.47 m
Transport height
2.54 m
Model series
542
Engine manuf.
JCB
Engine type
DieselMax 448
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
2200 rpm
Max. torque
690/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
106x135 mm
Emission level
V

More technical details, like: operating weight, tipping load, max. height at the shovel pivot point, max. discharge height, turning radius inside, dimension lxwxh are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 542-70 AGRI Pro FAQ

When was the JCB 542-70 AGRI Pro first produced?

The JCB 542-70 AGRI Pro was first produced in 2021.

What is the weight of the JCB 542-70 AGRI Pro?

The JCB 542-70 AGRI Pro has a weight of 8.84 tonnes.

What are the physical dimensions of the JCB 542-70 AGRI Pro yard loader?

The JCB 542-70 AGRI Pro has a transport length of 5.07 meters, a transport width of 2.47 meters, and a transport height of 2.54 meters.

What is the travel speed of the JCB 542-70 AGRI Pro yard loader?

The JCB 542-70 AGRI Pro has a travel speed of 50 km/h.

What are the maneuverability specifications of the JCB 542-70 AGRI Pro?

The JCB 542-70 AGRI Pro features all-wheel steering and has an outside turning radius of 4.4 meters.

What are the standard tyre specifications for the JCB 542-70 AGRI Pro?

The JCB 542-70 AGRI Pro is equipped with standard tyres sized 500/70 R24.

What is the wheelbase of the JCB 542-70 AGRI Pro yard loader?

The JCB 542-70 AGRI Pro has a wheelbase of 2.75 meters.

What is the overcharging height of the JCB 542-70 AGRI Pro yard loader?

The JCB 542-70 AGRI Pro has an overcharging height of 6.3 meters.

How much is a JCB 542-70 AGRI Pro Yard loader (2021u20132025) worth?

The residual value of the JCB 542-70 AGRI Pro depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
