538-70 AGRI Super JCB 538-70 AGRI Super Specifications & Technical Data (2021—2026)

Weight: 8.3t – Standard tyres: 460/70 R24 – Wheel base: 2.75m – Travel speed: 40km/h – Steering mode: A – Overcharging height: 6.3m

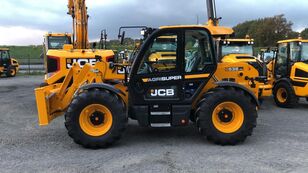

Yard loader JCB 538-70 AGRI Super

Visit JCB live at

Technical specs - 538-70 AGRI Super JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Standard tyres
460/70 R24
Wheel base
2.75 m
Travel speed
40 km/h
Steering mode
A
Overcharging height
6.3 m
Turning radius outside
3.7 m
Transport length
5.07 m
Transport width
2.34 m
Transport height
2.51 m
Model series
538
Engine manuf.
JCB
Engine type
DieselMax 448
Engine power
97 kW
Displacement
4.8 l
Revolutions at max torque
2200 rpm
Max. torque
550/1500 Nm
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, tipping load, max. height at the shovel pivot point, max. discharge height, turning radius inside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 538-70 AGRI Super FAQ

When was the JCB 538-70 AGRI Super first produced?

The JCB 538-70 AGRI Super was first produced in 2021.

What is the weight of the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super has a weight of 8.3 tonnes.

What are the transport dimensions of the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super has a transport length of 5.07 meters, a transport width of 2.34 meters, and a transport height of 2.51 meters.

What is the travel speed of the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super has a travel speed of 40 km/h.

What are the maneuverability specifications of the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super features all-wheel steering and has an outside turning radius of 3.7 meters.

What are the standard tyre specifications for the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super is equipped with standard tyres sized 460/70 R24.

What is the wheelbase of the JCB 538-70 AGRI Super?

The JCB 538-70 AGRI Super has a wheelbase of 2.75 meters.

What is the overcharging height of the JCB 538-70 AGRI Super yard loader?

The JCB 538-70 AGRI Super has an overcharging height of 6.3 meters.

How much is a JCB 538-70 AGRI Super Yard loader (2021u20132025) worth?

The residual value of the JCB 538-70 AGRI Super depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
