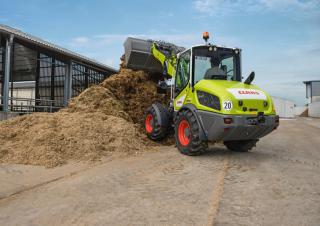

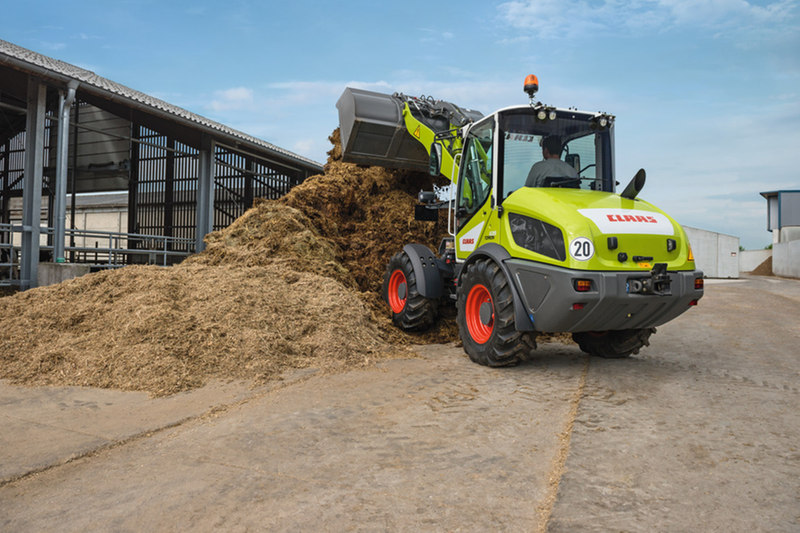

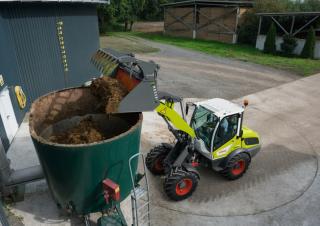

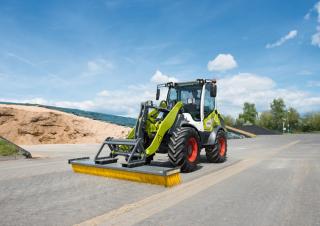

Torion 535 Claas Torion 535 Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - Torion 535 Claas
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.18 t
- Standard tyres
- 365/80 R20
- Tipping load
- 3450 kg
- Wheel base
- 2.15 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 3.19 m
- Overcharging height
- 2.8 m
- Max. discharge height
- 3.19 m
- Turning radius outside
- 4.23 m
- Transport length
- 4.595 m
- Transport width
- 1.76 m
- Transport height
- 2.46 m
- Model series
- Torion
- Engine manuf.
- Yanmar
- Engine type
- 4TNV98C
- Engine power
- 46 kW
- Displacement
- 3.32 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 239/1430 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 98x110 mm
- Emission level
- V
More technical details, like: operating weight, turning radius inside, dimension lxwxh are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
