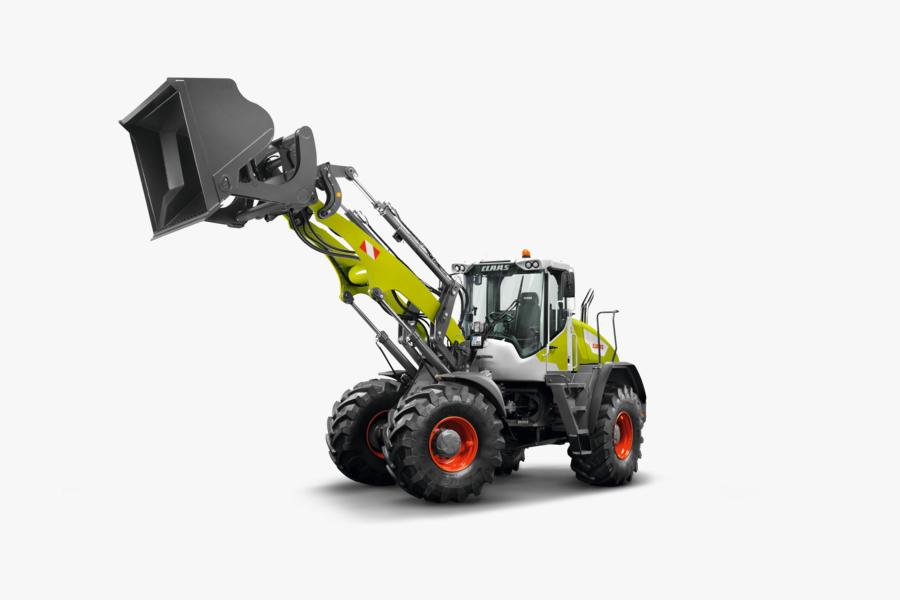

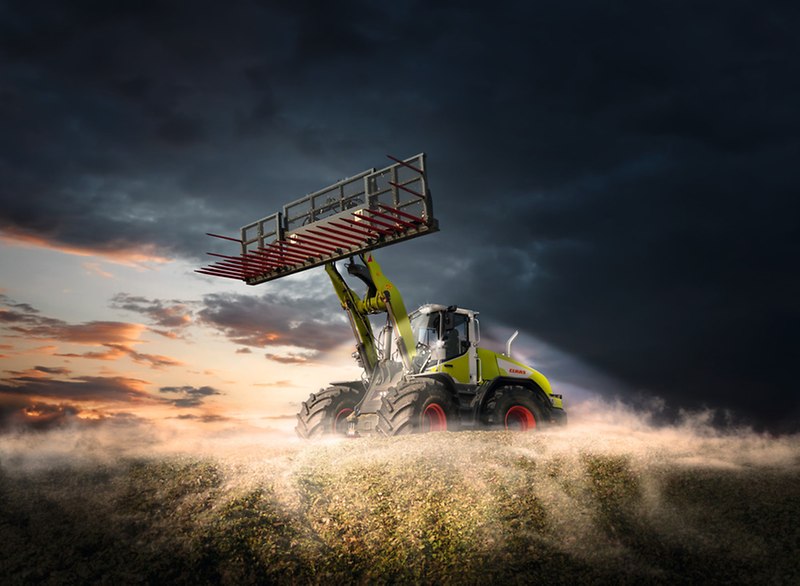

Torion 1511 P Claas Torion 1511 P Specifications & Technical Data (2020—2022)

Weight: 14.1t – Standard tyres: 20.5 R25 – Tipping load: 9750kg – Wheel base: 2.975m – Travel speed: 40km/h – Steering mode: KL

Torion 1511 P

Years of manufacture: 2020—2022

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - Torion 1511 P Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.1 t

Standard tyres: 20.5 R25

Tipping load: 9750 kg

Wheel base: 2.975 m

Travel speed: 40 km/h

Steering mode: KL

max. height at the shovel pivot point: 3.93 m

Max. discharge height: 3.93 m

Turning radius outside: 6.11 m

Transport length: 7.79 m

Transport width: 2.48 m

Transport height: 3.25 m

Engine manuf.: John Deere

Engine type: 6068HB551

Engine power: 168 kW

Displacement: 6.8 l

Revolutions at max torque: 2200 rpm

Max. torque: 970/1600 Nm

No. of cylinders: 6

Cylinder bore x stroke: 106x127 mm

Emission level: V

More technical details, like: operating weight, overcharging height, turning radius inside, model series, dimension lxwxh are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Torion 1511 P Claas Specification for Europe (ES)

Claas Torion 1511 P FAQ

When was the Claas Torion 1511 P manufactured?

The Claas Torion 1511 P was manufactured from 2020 to 2022.

What is the weight of the Claas Torion 1511 P?

The Claas Torion 1511 P has a weight of 14.1 tonnes.

What are the transport dimensions of the Claas Torion 1511 P?

The Claas Torion 1511 P has a transport length of 7.79 meters, a transport width of 2.48 meters, and a transport height of 3.25 meters.

What is the travel speed of the Claas Torion 1511 P?

The Claas Torion 1511 P has a travel speed of 40 km/h.

What are the maneuverability specifications of the Claas Torion 1511 P?

The Claas Torion 1511 P features articulated-frame steering and has an outside turning radius of 6.11 meters.

What are the tyre specifications for the Claas Torion 1511 P?

The Claas Torion 1511 P is equipped with standard tyres sized 20.5 R25.

What is the wheelbase of the Claas Torion 1511 P?

The Claas Torion 1511 P has a wheelbase of 2.975 meters.

What is the tipping load capacity of the Claas Torion 1511 P?

The Claas Torion 1511 P has a tipping load capacity of 9750 kilograms.

What are the maximum discharge height and the maximum height at the shovel pivot point of the Claas Torion 1511 P?

The Claas Torion 1511 P has a maximum discharge height of 3.93 meters and a maximum height at the shovel pivot point of 3.93 meters.
