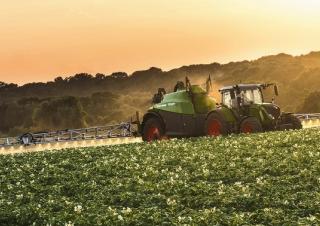

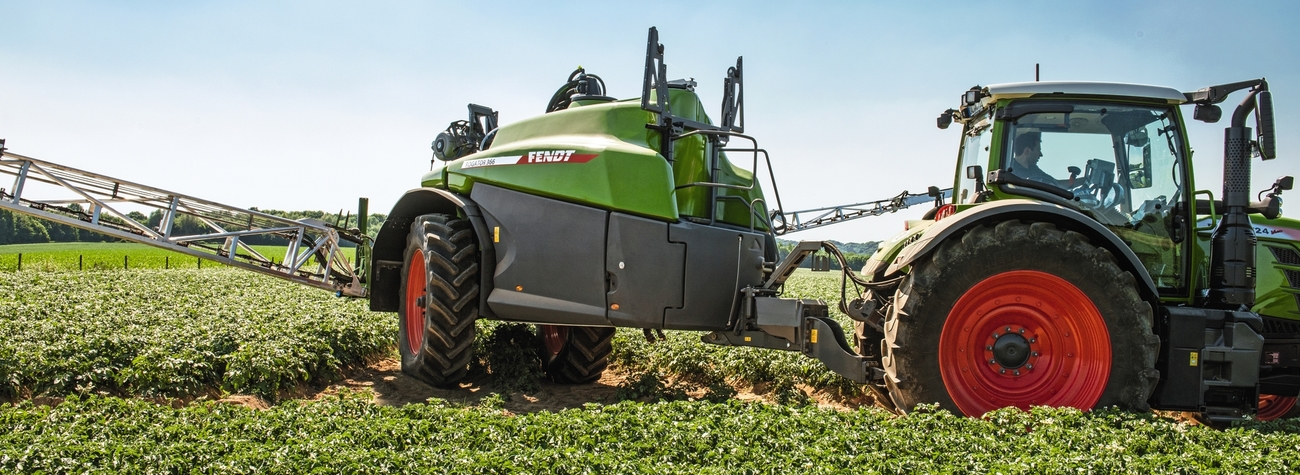

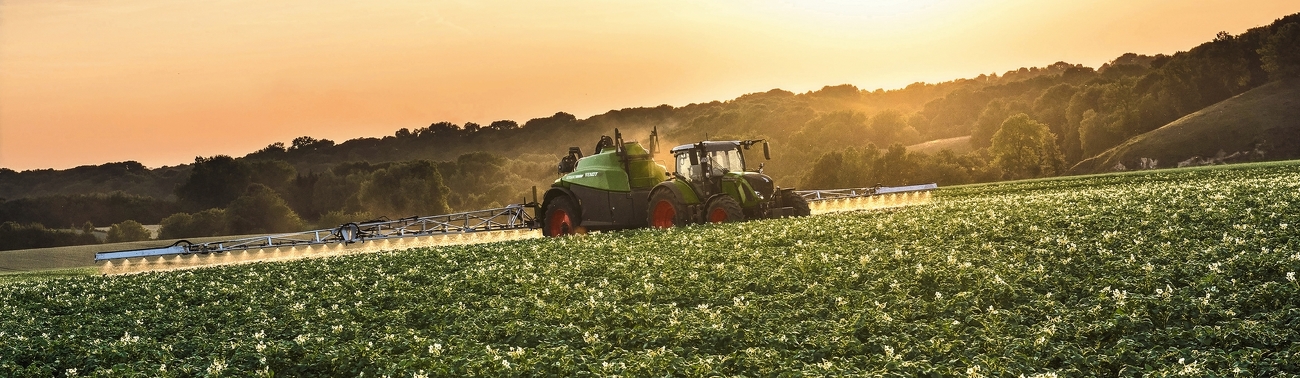

Rogator 344 Fendt Rogator 344 Specifications & Technical Data (2019—2022)

The Rogator for all seasons.

In the plant protection sector, there's one name that gives you precise boom control, easy handling and optimal, reliable application: Rogator. Our many years of experience and a number of key technologies have all gone into our innovative Rogator 300 to create the perfect solution.

Rogator 300 Features

We have reviewed countless customer surveys, performed extensive practical tests, and have combined everything in the Rogator 300 that our Fendt customers expect: perfect boom position, user-friendliness, efficient use of resources, and the best equipment. A plant protection implement designed simply to focus on the customer’s needs.

Very efficient operation

All machine functions can be operated from the Varioterminal 10.4" in combination with a Fendt tractor, with an additional terminal as an option. Our multifunction joystick offers you exceptional comfort and convenience, and is specially optimised for use with our plant protection technology. This allows you to conveniently control all sprayer functions via easily accessible buttons. The optional cameras give you perfect all-round visibility, right around the machine. The customised display gives all the key information you need at a glance.

Fully ISOBUS-capable

The Rogator 300 is fully ISOBUS-compatible. The ISOBUS functionality ensures that tractor and plant protection sprayer can be easily combined.

100% quality, 100% service: Fendt Services

We offer outstanding services to offer you the best possible reliability of use and efficiency from your Fendt Machine:Fendt Demo serviceFendt Expert operator trainingAGCO Finance – finance and lease dealsFendt Care – servicing and guarantee extensionsFendt Certified - Pre-owned machine programme.

Fendt Expert operator training

We help you get the most out of your vehicle. With the help of our exclusive Fendt Expert operator training programme, you can optimise the efficiency of your Fendt even further, and get to know all the functions to make your daily routine that much easier. Our team of professional trainers will advise you on how to use your Fendt machine to its full potential.

Operator convenience

All filling fittings are clearly arranged on the left-hand side of the machine. The large and easy to open panels of the Rogator 300 consist of the same HDPE material as the spray tank. Extremely smooth, glass-like surfaces effectively prevent sticking and are easy to clean. Cleverly-designed and sealed stowage compartments allow personal protective equipment and funnels to be carried safely. The hydraulic agitator power can be adjusted from the terminal. Foaming residues are prevented by the agitator control which is linked to the fill level.

Robust tanks

The spray tanks on the Rogator are made from high-density polyethylene (HDPE). The tank’s shape is a perfect fit for the machine frame, guarantees an optimal weight distribution, and can be completely drained through a 3" transfer fitting. The filling tube stretching down to the tank floor prevents foaming. The fill level is determined by pressure sensors on the tank floor.

Tank cleaning

Few residues remain inside the tank courtesy of the smooth, non-stick surface. Even hidden spots in the tank can be cleaned quickly and reliably with relatively little water, thanks to the six reflux Hypro rotation nozzles. The automatic tank cleaning system cleans the tank from top to bottom, or just flushes the boom. The clean water tank holds 900 litres.

Operation

All valve functions required for filling and stirring can be operated from the OptiFlow control centre on the induction hopper, as well as from the cab. The standard automatic filling system stops exactly at the number of litres set by the operator – even if there are two figures, e.g. water and pesticides. The system always guarantees an optimal spray liquid mixture in the tank at all times and reliably prevents overfilling.

A perfect concentration from start to finish

The permanent circulation through the 1" spray line feeds the solution straight to the diffuser as soon as the rotor pump is switched on, even if the diffusers are closed. Apply the right quantity and concentration of liquid across the entire working width from the very first metre. To clean the diffusers, switch the intake end of the pump over to the clean water tank and briefly switch on the diffusers. This is how you reliably and effectively prevent deposits in the diffuser pipe and diffusers. Easy, quick, reliable – from the convenience of the operator’s seat.

Section engagement for increased efficiency

The automatic section engagement facility is absolutely essential for those who need 100% efficiency. Valuable liquids are not used twice on the same area, and there’s also no overlapping or gaps. This applies to large areas as well as to smaller, winding run-outs. The ISOBUS standard function TC-SC (TaskController SectionControl) automatically engages sections depending on the GPS position and the required degree of overlapping. SectionControl can also produce higher yields while saving 15% of the spray liquid costs.

Unique pivot

The parallel linkage and articulation of the lift arm fitted in front of the suspended axle keep the centre frame close to the rear axle, and transfer very little chassis movement to the boom.

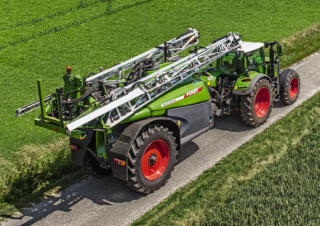

Compact folded boom

When collapsed, the boom rests in grooves on the side of the spray tank. Depending on the version, this creates a machine width of 2.55 m when the boom is collapsed, ideal for optimal transport and for preventing damage. The Fendt boom has one of the most stable designs on the market. Especially when it comes to yaw, the Fendt Rogator 300 has it all under control: Regardless of the road speed and ground conditions, the pivot is able to almost completely eliminate horizontal vibrations, and without having to turn to elaborate controls or sensors.

Ideal positioning at all times

Horizontal and vertical boom movement, which can be attributed to the terrain or to the acceleration and slowing of the vehicle, are almost completely eliminated by the special Rogator damper cylinder. At the same time, the system reduces the main frame load to a minimum. Due to the low yaw, there is no overlapping and no gaps which can often be caused by a swinging (forward/back) boom.

OptiSonic height control

Thanks to the OptiSonic boom height control system, the right, middle and left sides of the boom automatically and separately follow the ground. Four ultrasonic sensors keep the spray height constant at all times. The boom is of course protected against damage by an impact guard.

Headland management

Headland management activates a range of functions at the touch of a single button. Turn on/off the application process, OptiSonic boom control, boom flushing, rear axle control, or switch the cruise control and VarioGuide guidance system. All this helps take the stress out of your working day. If field boundaries are stored, there’s no risk that application of liquid will start if the boom moves beyond the field boundary. Even if the run-in lines are unclear or if you work at night, you’ll only treat your target area.

Flexible drawbar

The universal drawbar allows the Rogator 300 to be used with clevis-type coupling and hitch-type couplings, with all drawbar eyes available on the market, or with ball couplings. You can switch between clevis-type coupling and hitch-type coupling at any time. The tractor’s load-sensing hydraulics efficiently power the Rogator 300, with a PTO drive also available on request.

Sturdy frame

The undebatable backbone of the machine, developed from the self-propelled frame, forms the basis for precise application and therefore effective use of your spray liquid. The boom is guided in front of the rear axle, so that the chassis only transfers minimal movements to the boom. The Rogator 300 always works with the utmost precision.

Now even lighter

The Rogator 300 comes as standard with a rigid lightweight aluminium boom, which is available in widths of 24 to 36 metres. This is attached to the machine via a central frame, which is not only robust, but also provides an exceptional level of stability when spraying at any speed. The nozzle holders are fitted into a frame profile to protect them. The wide holder profile ensures easy access and also allows the use of double flat fan nozzles in any position. In view of the very high performance values and potential of this machine, only this boom can meet the heavy demands in practice.

High-performance pump

A rotary pump with optionally self-priming unit and 785 l/min pump capacity, driven by the load-sensing hydraulics or PTO, supplies all liquid-distributing parts of the system. The flow rate of the rotary pump prevents pulsation in the lines and ensures maximum application accuracy. There are no additional hoses or relief valves which are difficult to clean on membrane pumps. Application quantities are controlled via the pump speed – quickly and efficiently – and the pump only carries the required quantity of liquid for spraying, plus the specified quantity for the agitator. This helps the Rogator 300 to respond accurately to changing application quantities and different speeds.

Reliability with no strings attached

Our low-maintenance pump guarantees excellent reliability and low operating costs. Combined with the 3” fitting, you have everything you need to fill the tank quickly.
