85C Challenger 85C Specifications & Technical Data (1994—1996)

Engine power: 264.7kW – Model series: 80C – Track width: 760mm – Transport length: 5.89m – Transport width: 3.04m – Transport height: 3.25m

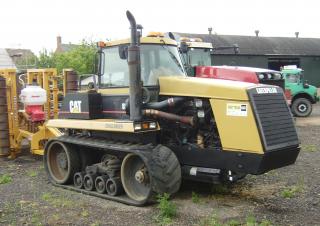

Track tractors Challenger 85C

Technical specs - 85C Challenger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
264.7 kW
Model series
80C
Track width
760 mm
Transport length
5.89 m
Transport width
3.04 m
Transport height
3.25 m
Transmission
10/2
Transmission type
LS
Weight
15.261 t
Engine manuf.
Caterpillar
Engine type
3176 ATAAC
Displacement
10.3 l
No. of cylinders
6
Cylinder bore x stroke
125x140 mm

More technical details, like: length of travelling mechanism, travel speed, control unit, three point category, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Challenger 85C FAQ

When was the Challenger 85C track tractor manufactured?

The Challenger 85C track tractor was manufactured from 1994 to 1996.

What is the weight of the Challenger 85C track tractor?

The Challenger 85C track tractor has a weight of 15.261 tonnes.

What are the physical dimensions of the Challenger 85C track tractor?

The Challenger 85C has a transport length of 5.89 meters, a transport width of 3.04 meters, and a transport height of 3.25 meters.

What is the engine power of the Challenger 85C?

The Challenger 85C has an engine power of 264.7 kW.

What type of transmission does the Challenger 85C have?

The Challenger 85C is equipped with a Powershift transmission.

What is the track width of the Challenger 85C track tractor?

The Challenger 85C has a track width of 760 millimeters.

How much is a Challenger 85C Track tractor (1994u20131996) worth?

The residual value of the Challenger 85C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
