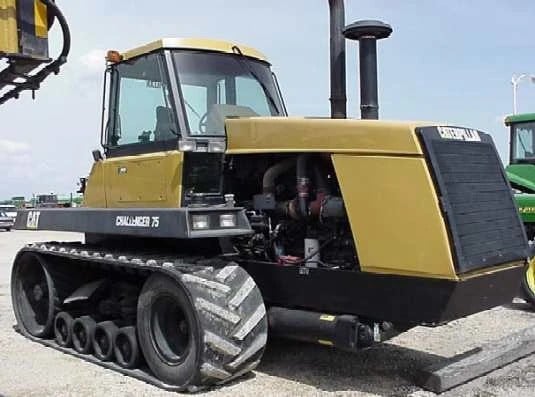

75 Challenger 75 Specifications & Technical Data (1991—1992)

Engine power: 242.4kW – Model series: 70 – Track width: 690mm – Transmission: 10/2 – Transmission type: LS – Weight: 15.59t

Track tractors Challenger 75

Technical specs - 75 Challenger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
242.4 kW
Model series
70
Track width
690 mm
Transmission
10/2
Transmission type
LS
Weight
15.59 t
Engine manuf.
Caterpillar
Engine type
N/a
Displacement
10.3 l
No. of cylinders
6
Cylinder bore x stroke
125x140 mm

More technical details, like: length of travelling mechanism, transport length, transport width, transport height, travel speed, control unit, three point category, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Challenger 75 FAQ

When was the Challenger 75 (Model series 70) track tractor manufactured?

The Challenger 75 (Model series 70) track tractor was manufactured from 1991 to 1992.

What is the weight of the Challenger 75 track tractor?

The Challenger 75 track tractor has a weight of 15.59 tonnes.

What is the engine power of the Challenger 75 track tractor?

The Challenger 75 track tractor has an engine power of 242.4 kW.

What type of transmission does the Challenger 75 have?

The Challenger 75 is equipped with a powershift transmission.

What is the track width of the Challenger 75?

The Challenger 75 has a track width of 690 millimeters.

How much is a Challenger 75 Track tractor (1991u20131992) worth?

The residual value of the Challenger 75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
