R4040i John Deere R4040i Specifications & Technical Data (2014—2020)

Weight: 12.1t – Pump type: Membrane – Linkage type: CCS – Standard tyres: 380/90 R46 – Foldable linkage: 2-fach – No. of partial widths: 12

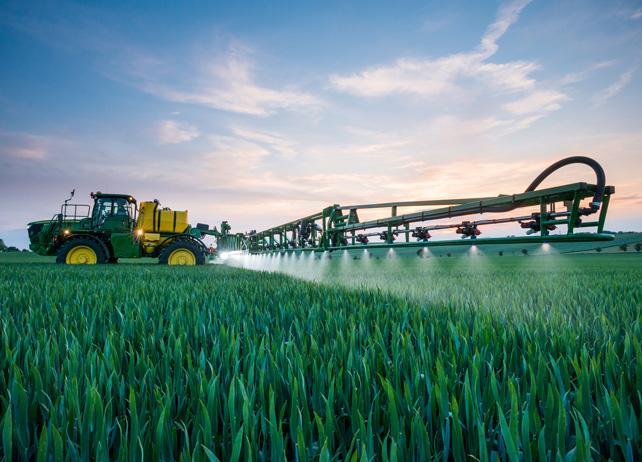

Self-propelled field sprayers John Deere R4040i
Self-propelled field sprayers John Deere R4040i
Self-propelled field sprayers John Deere R4040i
Self-propelled field sprayers John Deere R4040i
Self-propelled field sprayers John Deere R4040i
Self-propelled field sprayers John Deere R4040i

Technical specs - R4040i John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.1 t
Pump type
Membrane
Linkage type
CCS
Standard tyres
380/90 R46
Foldable linkage
2 -fach
No. of partial widths
12
Working width
36 m
Travel speed
40 km/h
Drive
A
Barrel volume
4000 l
Pump capacity
280 l/min
Transport length
9.1 m
Transport width
3 m
Transport height
3.75 m
Engine manuf.
John Deere
Engine type
PSS
Engine power
190 kW
Displacement
6.8 l
Revolutions at max torque
1900 rpm
No. of cylinders
6
Emission level
IV

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
No

Download datasheets (PDF)

John Deere R4040i FAQ

When was the John Deere R4040i manufactured?

The John Deere R4040i was manufactured from 2014 to 2020.

What is the weight of the John Deere R4040i?

The John Deere R4040i has a weight of 12.1 tonnes.

What are the transport dimensions of the John Deere R4040i?

The John Deere R4040i has a transport length of 9.1 meters, a transport width of 3 meters, and a transport height of 3.75 meters.

What is the travel speed of the John Deere R4040i?

The John Deere R4040i has a travel speed of 40 km/h.

What type of drivetrain does the John Deere R4040i have?

The John Deere R4040i has an all-wheel drive drivetrain.

What are the standard tyre specifications for the John Deere R4040i?

The John Deere R4040i is equipped with standard tyres sized 380/90 R46.

What is the working width of the John Deere R4040i?

The John Deere R4040i has a working width of 36 meters.

What is the volume capacity of the John Deere R4040i?

The John Deere R4040i has a barrel volume capacity of 4000 liters.

What are the key spraying system components of the John Deere R4040i?

The John Deere R4040i uses a CCS model linkage, has 12 partial widths, and its boom folds into 2 sections.

What are the spraying and pump system specifications for the John Deere R4040i?

The John Deere R4040i is equipped with a membrane type pump with a capacity of 280 liters per minute.

How much is a John Deere R4040i Self-propelled field sprayer (2014u20132020) worth?

The residual value of the John Deere R4040i depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
