5430i John Deere 5430i Specifications & Technical Data (2008—2015)

Weight: 11.5t – Pump type: Membrane – Linkage type: CCS – Foldable linkage: 2-fach – No. of partial widths: 11 – Working width: 33m

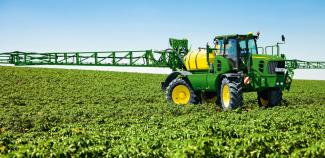

Self-propelled field sprayers John Deere 5430i

Technical specs - 5430i John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.5 t
Pump type
Membrane
Linkage type
CCS
Foldable linkage
2 -fach
No. of partial widths
11
Working width
33 m
Travel speed
40 km/h
Barrel volume
4000 l
Pump capacity
560 l/min
Transport length
9.1 m
Transport width
3 m
Transport height
3.75 m
Engine manuf.
John Deere
Engine type
PowerTech
Engine power
169 kW
Displacement
6.8 l
Revolutions at max torque
2100 rpm
No. of cylinders
6
Emission level
Tier 3

More technical details, like: standard tyres, drive, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
Yes

Download datasheets (PDF)

John Deere 5430i FAQ

When was the John Deere 5430i manufactured?

The John Deere 5430i was manufactured from 2008 to 2015.

What is the weight of the John Deere 5430i?

The John Deere 5430i has a weight of 11.5 tonnes.

What are the transport dimensions of the John Deere 5430i?

The John Deere 5430i has a transport length of 9.1 meters, a transport width of 3 meters, and a transport height of 3.75 meters.

What is the travel speed of the John Deere 5430i?

The John Deere 5430i has a travel speed of 40 km/h.

What is the working width of the John Deere 5430i?

The John Deere 5430i has a working width of 33 meters.

What is the volume capacity of the John Deere 5430i?

The John Deere 5430i has a barrel volume capacity of 4000 liters.

What are the key spraying system components of the John Deere 5430i?

The John Deere 5430i uses a CCS model linkage, has 11 partial widths, and its boom folds into 2 sections.

What are the spraying and pump system specifications of the John Deere 5430i?

The John Deere 5430i is equipped with a membrane type pump that has a capacity of 560 liters per minute.
