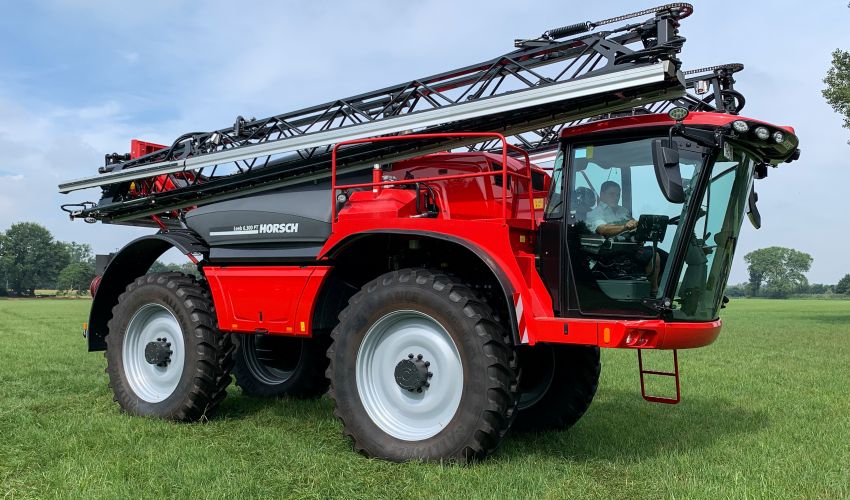

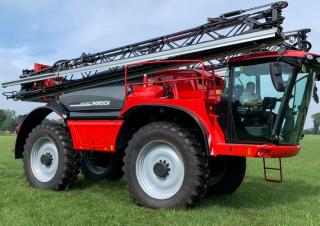

PT 280 Horsch PT 280 Specifications & Technical Data (2015—2019)

Weight: 11t – Standard tyres: VF 520 / 85 R 46 – No. of partial widths: 5 – Working width: 18m – Travel speed: 40km/h – Barrel volume: 8000l

Self-propelled field sprayers Horsch PT 280

Technical specs - PT 280 Horsch

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11 t
Standard tyres
VF 520 / 85 R 46
No. of partial widths
5
Working width
18 m
Travel speed
40 km/h
Barrel volume
8000 l
Pump capacity
200 l/min
Transport length
7.2 m
Transport width
2.8 m
Transport height
3 m
Engine manuf.
Mercedes
Engine type
OM936
Engine power
210 kW
Displacement
7.7 l
Revolutions at max torque
1400 rpm
Max. torque
1150 Nm
Emission level
Tier 4f

More technical details, like: pump type, linkage type, foldable linkage, drive, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
No

Horsch PT 280 FAQ

When was the Horsch PT 280 manufactured?

The Horsch PT 280 was manufactured from 2015 to 2019.

What is the weight of the Horsch PT 280?

The Horsch PT 280 has a weight of 11 tonnes.

What are the transport dimensions of the Horsch PT 280?

The Horsch PT 280 has a transport length of 7.2 meters, a transport width of 2.8 meters, and a transport height of 3 meters.

What is the travel speed of the Horsch PT 280?

The Horsch PT 280 has a travel speed of 40 km/h.

What are the standard tyre specifications for the Horsch PT 280?

The Horsch PT 280 is equipped with standard tyres sized VF 520 / 85 R 46.

What is the working width of the Horsch PT 280?

The Horsch PT 280 has a working width of 18 meters.

What is the volume capacity of the Horsch PT 280?

The Horsch PT 280 has a barrel volume capacity of 8000 liters.

What are the spraying system components of the Horsch PT 280?

The Horsch PT 280 has 5 partial widths in its spraying system.

What are the spraying and pump system specifications for the Horsch PT 280?

The Horsch PT 280 has a pump capacity of 200 liters per minute.

How much is a Horsch PT 280 Self-propelled field sprayer (2015u20132019) worth?

The residual value of the Horsch PT 280 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
